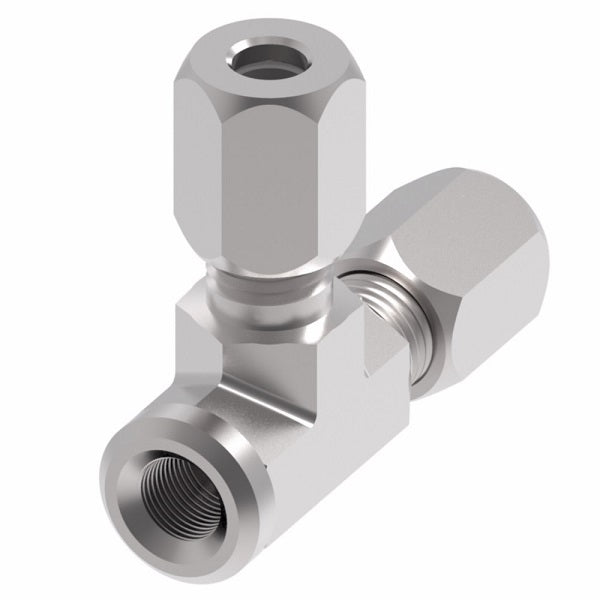

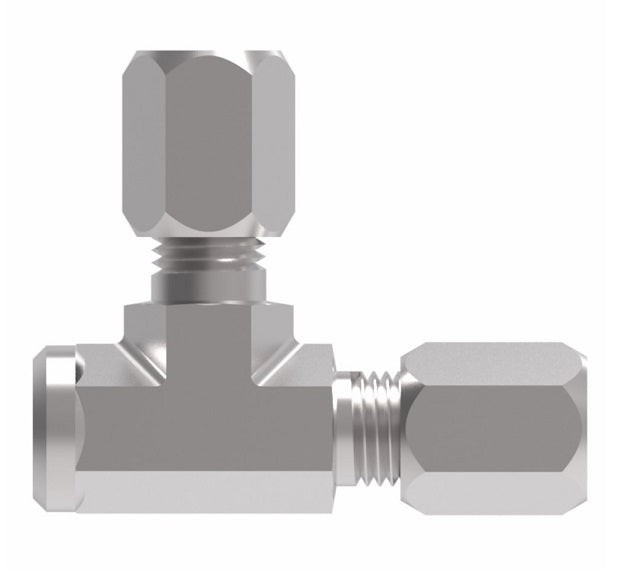

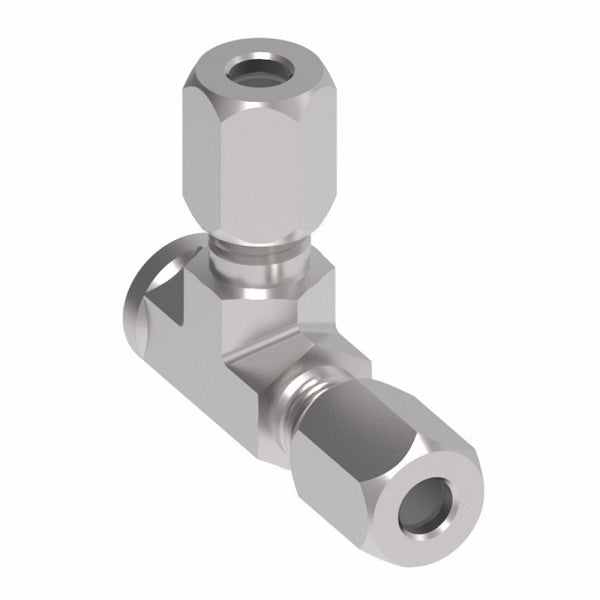

7805X4 Ermeto by Danfoss | 7000 Series | Female NPTF Run/Tube Tee | 1" Tube OD x 1/8" Female NPTF x 1" Tube OD | Steel
7805X4 Ermeto by Danfoss | 7000 Series | Female NPTF Run/Tube Tee | 1" Tube OD x 1/8" Female NPTF x 1" Tube OD | Steel
7805X4 Ermeto by Danfoss | 7000 Series | Female NPTF Run/Tube Tee | 1" Tube OD x 1/8" Female NPTF x 1" Tube OD | Steel

7805X4 Ermeto by Danfoss | 7000 Series | Female NPTF Run/Tube Tee | 1" Tube OD x 1/8" Female NPTF x 1" Tube OD | Steel

Sale price$27.76

Ermeto by Danfoss
Female NPTF Run/Tube Tee
Tube x Female NPTF x Tube

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Buy More, Save More!
Quantity Price Each
10–39 $26.09
40–79 $23.60
80+ $20.82
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Tube Compression
  • 1/8in Female NPTF
  • 1in Tube Compression
  • Some Ends Match
Material(s):
  • Steel
Specifications:
  • Ref. SAE No. 080426
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Female Pipe Thread D M N Across
Flats
7805X4 B7805X4 1/4" 1/8" 0.203" 0.89" 0.66" 9/16"
7805X6 B7805X6 3/8" 1/4" 0.281" 1.05" 0.88" 3/4"
7805X8 B7805X8 1/2" 3/8 0.422" 1.23" 1.02" 7/8"
