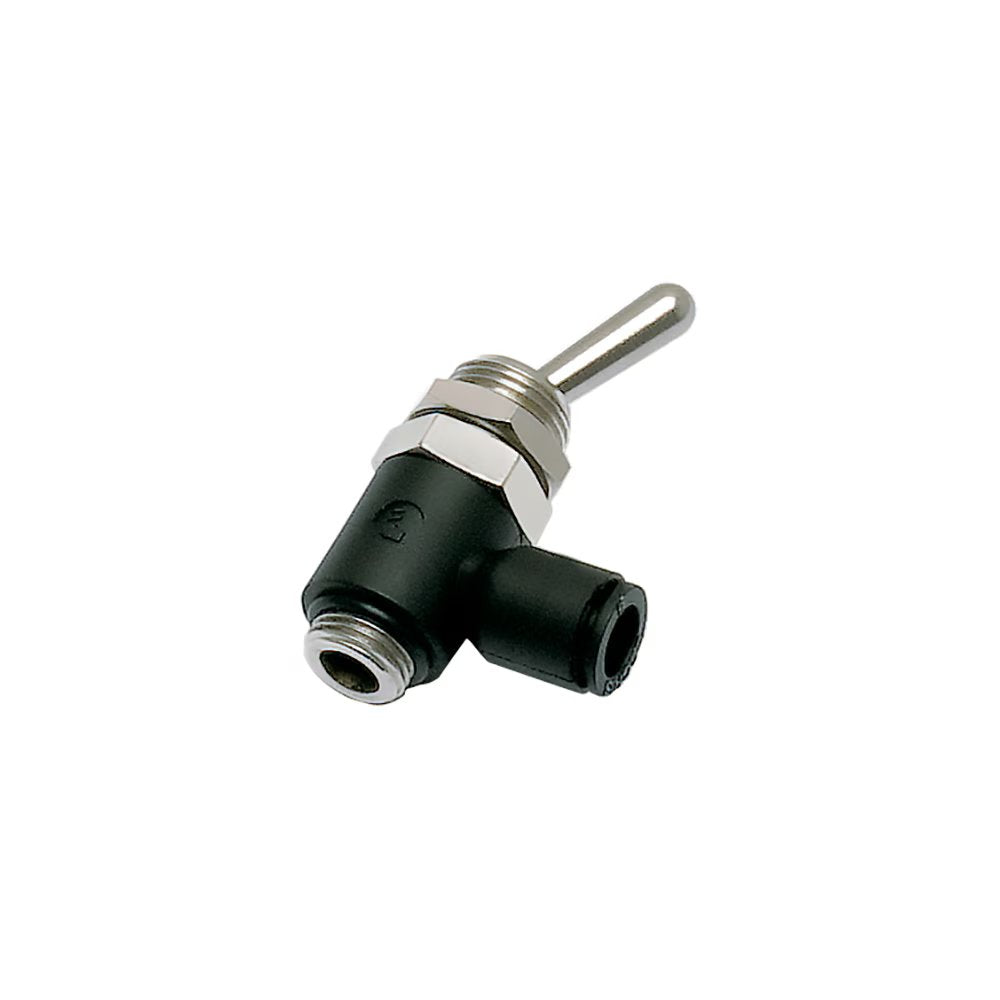

7802 08 13 by Parker | Legris 2/2 Manual Switch-Operated Valve | 8 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

7802 08 13 by Parker | Legris 2/2 Manual Switch-Operated Valve | 8 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

Sale price$99.21

by Parker Hannifin
Manually-Operated Valves:7802 2/2 Manual Switch-Operated Valve, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $93.26
30–59 $84.33
60+ $74.41
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7802 Series
Shape:

90° Elbow

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
    Model 0669: 0 to 16 bar
  • Working Temperature: -10°C to +80°C
    Model 0669: -5°C to +70°C
Advantages:
      Manual switch-operated valves:
  • 2 models:
      • - 3/2: opening, closing, venting
      - 2/2: opening, closing
  • Can be positioned through 360°
  • Manual switch-operated valves:
  • Uni-directional use ensures the downstream circuit is vented
  • Identification of the venting system by the color (red)
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Bolt: Manual switch-operated valve: nickel-plated brass with seal
    Sleeve valve: Nickel-plated brass
  • Body: Manual switch-operated valve: Technical polymer
    Sleeve valve: Nickel-plated brass
  • Seal: NBR
  • Lever: Nickel-plated brass
  • Locking nut: Nickel-plated brass
Part Number ØD C F F1 H L1 L2 Kg
7802 08 13 8 mm 1/4" 17 mm 14 mm 50.5 mm 9 mm 27 mm .052 Kg
