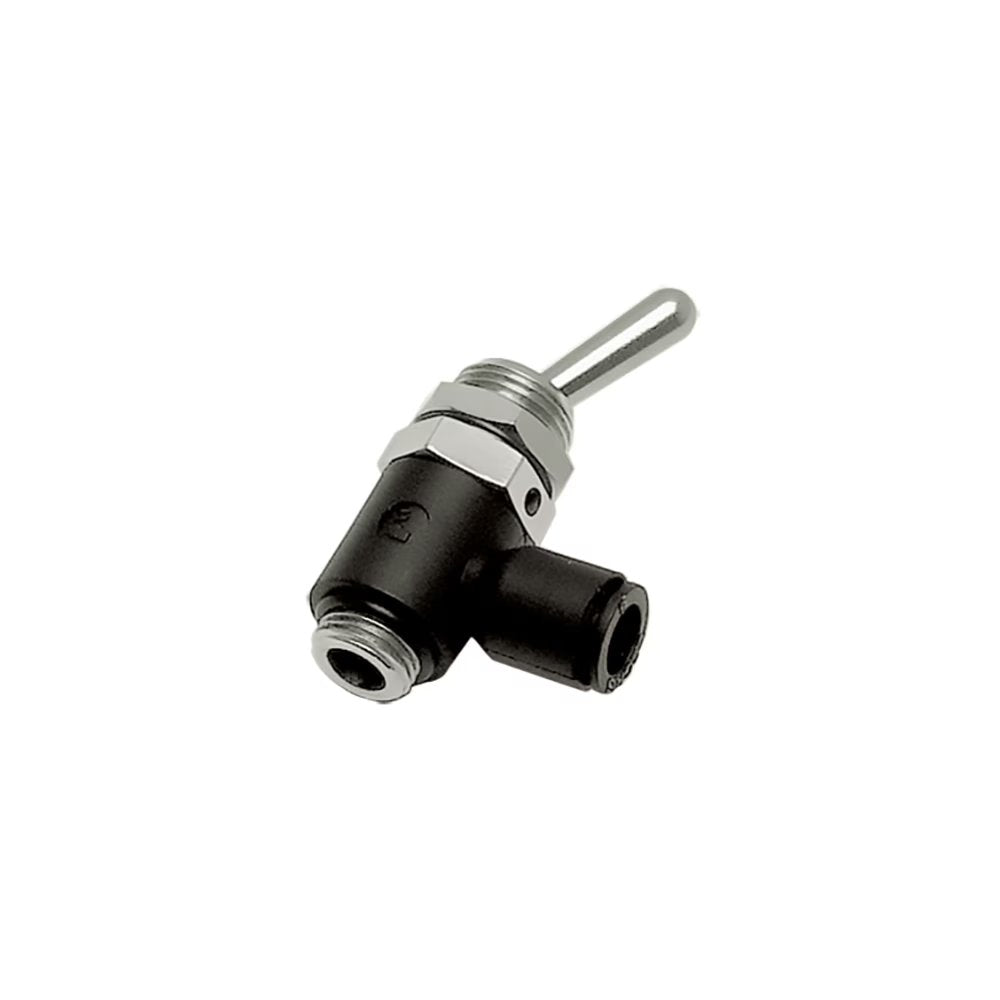

7801 06 13 by Parker | Legris 3/2 Manual Switch-Operated Valve Control | 6 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

7801 06 13 by Parker | Legris 3/2 Manual Switch-Operated Valve Control | 6 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

Sale price$85.70

by Parker Hannifin
Manually-Operated Valves:7801 3/2 Manual Switch-Operated Valve, Control, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $80.56
30–59 $72.85
60+ $64.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7801 Series
Shape:

90° Elbow

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
    Model 0669: 0 to 16 bar
  • Working Temperature: -10°C to +80°C
    Model 0669: -5°C to +70°C
Advantages:
      Manual switch-operated valves:
  • 2 models:
      • - 3/2: opening, closing, venting
      - 2/2: opening, closing
  • Can be positioned through 360°
  • Manual switch-operated valves:
  • Uni-directional use ensures the downstream circuit is vented
  • Identification of the venting system by the color (red)
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Bolt: Manual switch-operated valve: nickel-plated brass with seal
    Sleeve valve: Nickel-plated brass
  • Body: Manual switch-operated valve: Technical polymer
    Sleeve valve: Nickel-plated brass
  • Seal: NBR
  • Lever: Nickel-plated brass
  • Locking nut: Nickel-plated brass
Part Number ØD C F F1 H L1 L2 Kg
7801 04 10 4 mm 1/8" 14 mm 14 mm 43 mm 7 mm 18.5 mm .023 Kg
7801 06 10 6 mm 1/8" 14 mm 14 mm 43 mm 7 mm 20 mm .023 Kg
7801 06 13 6 mm 1/4" 17 mm 14 mm 50.5 mm 9 mm 22 mm .050 Kg
7801 08 10 8 mm 1/8" 14 mm 14 mm 43 mm 7 mm 25 mm .026 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
