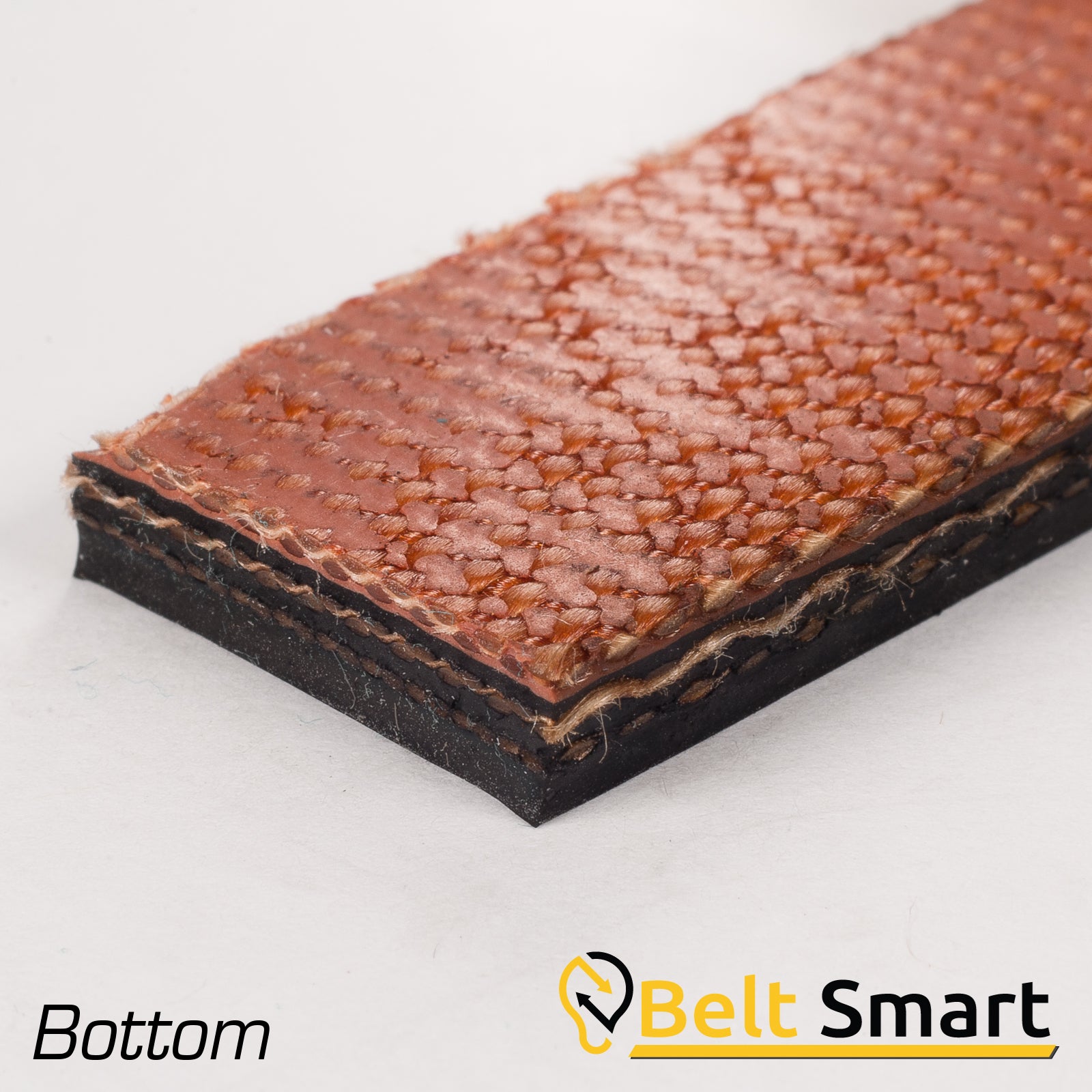

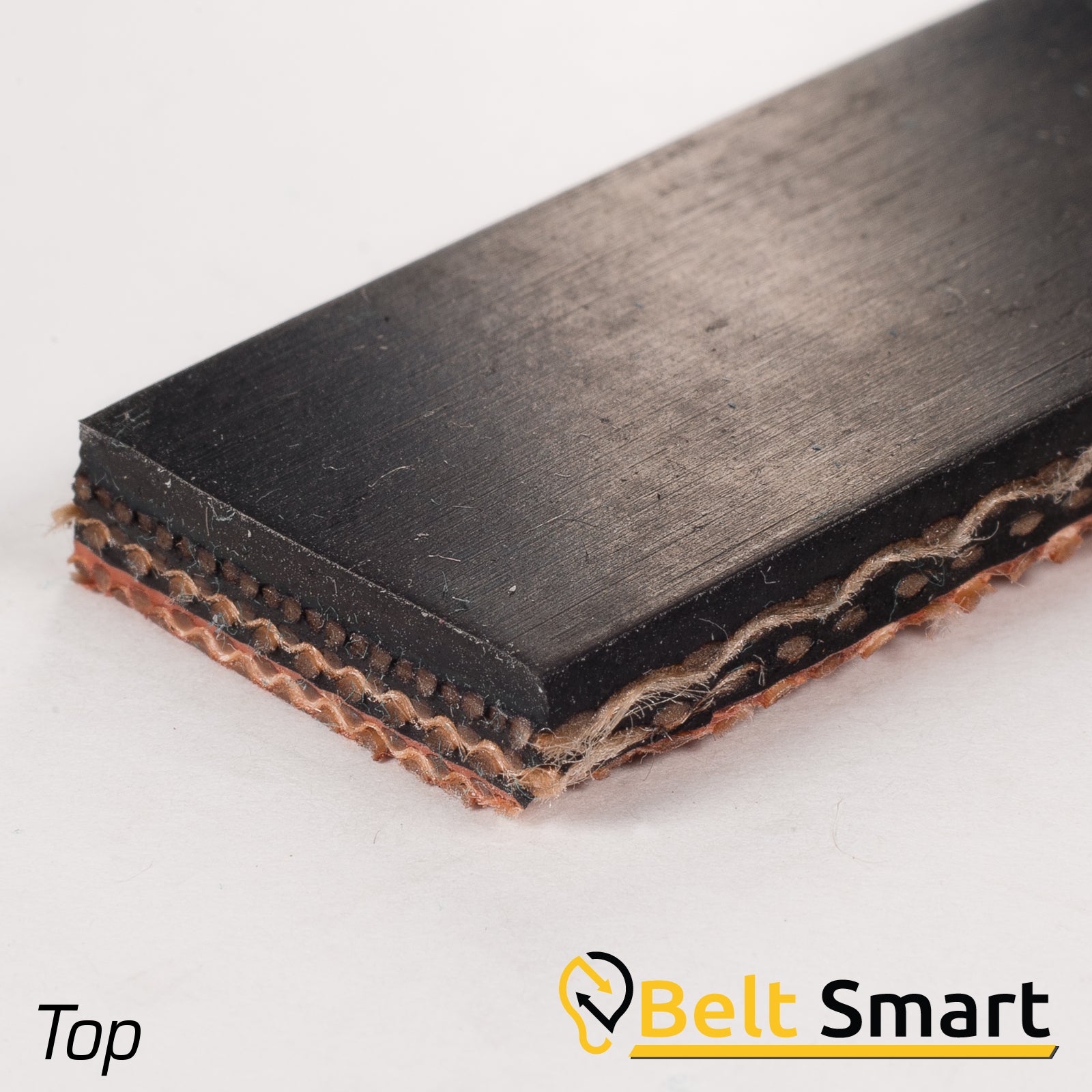

BS077C - #77c Beltservice 3 Ply 330 Black Belt 1/16" x Bare Conveyor Belt
BS077C - #77c Beltservice 3 Ply 330 Black Belt 1/16" x Bare Conveyor Belt
Beltservice

BS077C - #77c Beltservice 3 Ply 330 Black Belt 1/16" x Bare Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Heavy Duty Belting
Features:
  • These belts feature the same compounds and fabric as the 2 ply belts above, but offer an additional ply to provide extra strength and impact resistance.
  • No. 80b is used primarily on high-tension conveyors and elevators with long centers or in abusive situations.
3 Ply 330
3/16" x 1/16"
Pt No.: 77		 3 Ply 330
1/16" x Bare
Pt No.: 77c		 3 Ply 330
3/16" x Bare
Pt No.: 77d		 3 Ply 330
1/4" x 1/16"
Pt No.: 78		 3 Ply 600
1/4" x 1/16"
Pt No.: 80b		 3 Ply 600
3/8" x 1/8"
Pt No.: 80d
Thickness 13/32" 7/32" 3/8" 29/64" 5/8" N/A
Covers 3/16" x 1/16" 1/16" x Bare 3/16" x Bare 1/4" 1/16" 1/4" x 1/16" N/A
Carcass Synthetic
Working Tension
per Inch Width		 330 lbs. 330 lbs. 330 lbs. 330 lbs. 600 lbs. N/A
Approx. Weight
Lbs. Per Inch Width		 .217 lbs. .104 lbs. .190 lbs. .250 lbs. .315 lbs. N/A
Min. Pulley Diameter
Head		 18" 18" 18" 18" 20" N/A
Min. Pulley Diameter
Tail		 12" 12" 12" 12" 18" N/A
Temperature Range -25 deg. F / 225 deg. F
Compound SBR SBR/NR SBR/NR SBR SBR N/A
Lacing/Fastener
Recommendations		 Flexco Plate #190
Flexco Hinged #375 or #550
Flexco Rivet R5-1/2		 Flexco Plate #140
Flexco Hinged #375 or #550
Flexco Rivet R5		 Flexco Plate #190
Flexco Hinged #550
Flexco Rivet R5-1/2		 Flexco Plate #190
Flexco Hinged #550
Flexco Rivet R6		 Flexco Plate #1-1/2
Flexco Hinged #550 or #750
Flexco Rivet R6		 N/A
N/A
N/A
