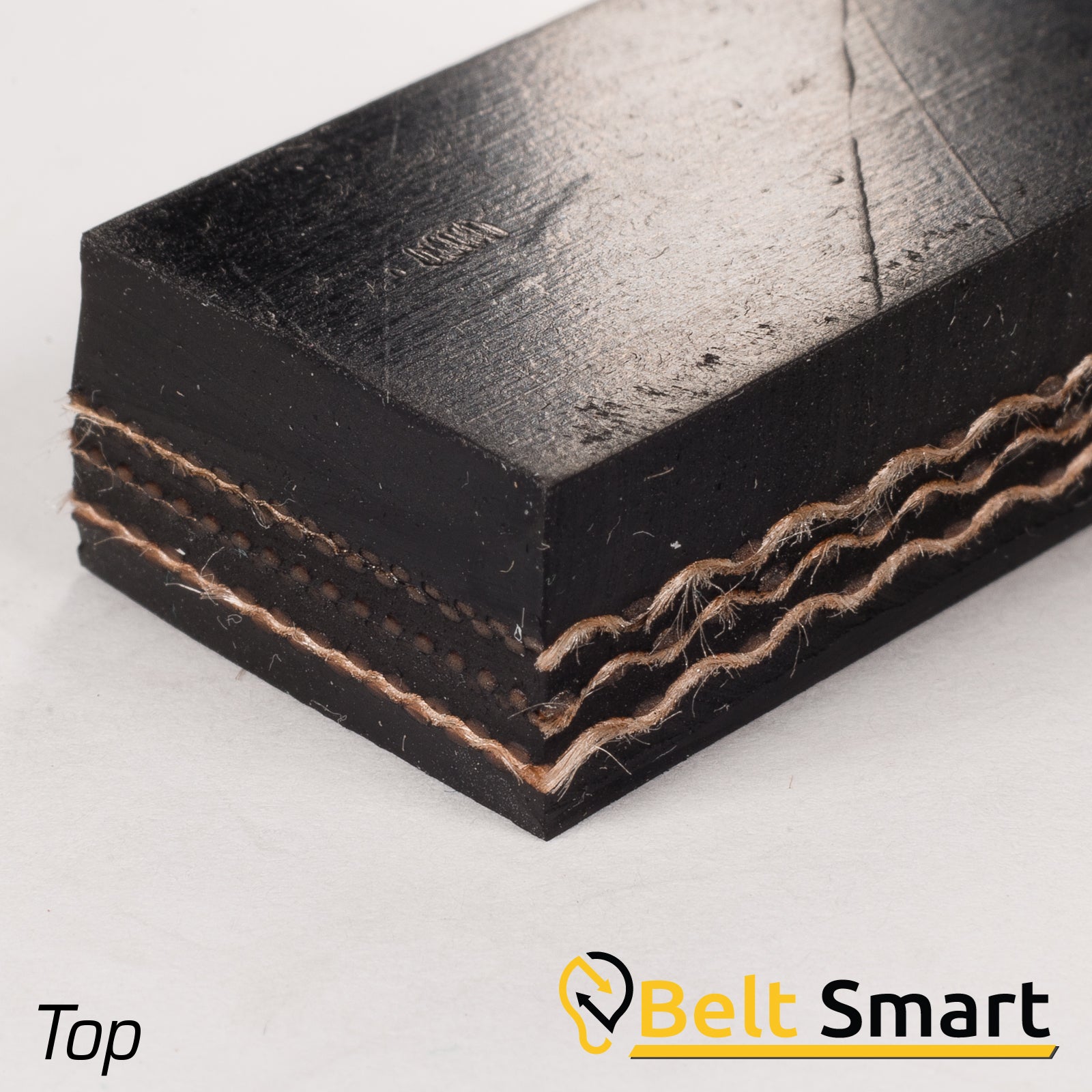

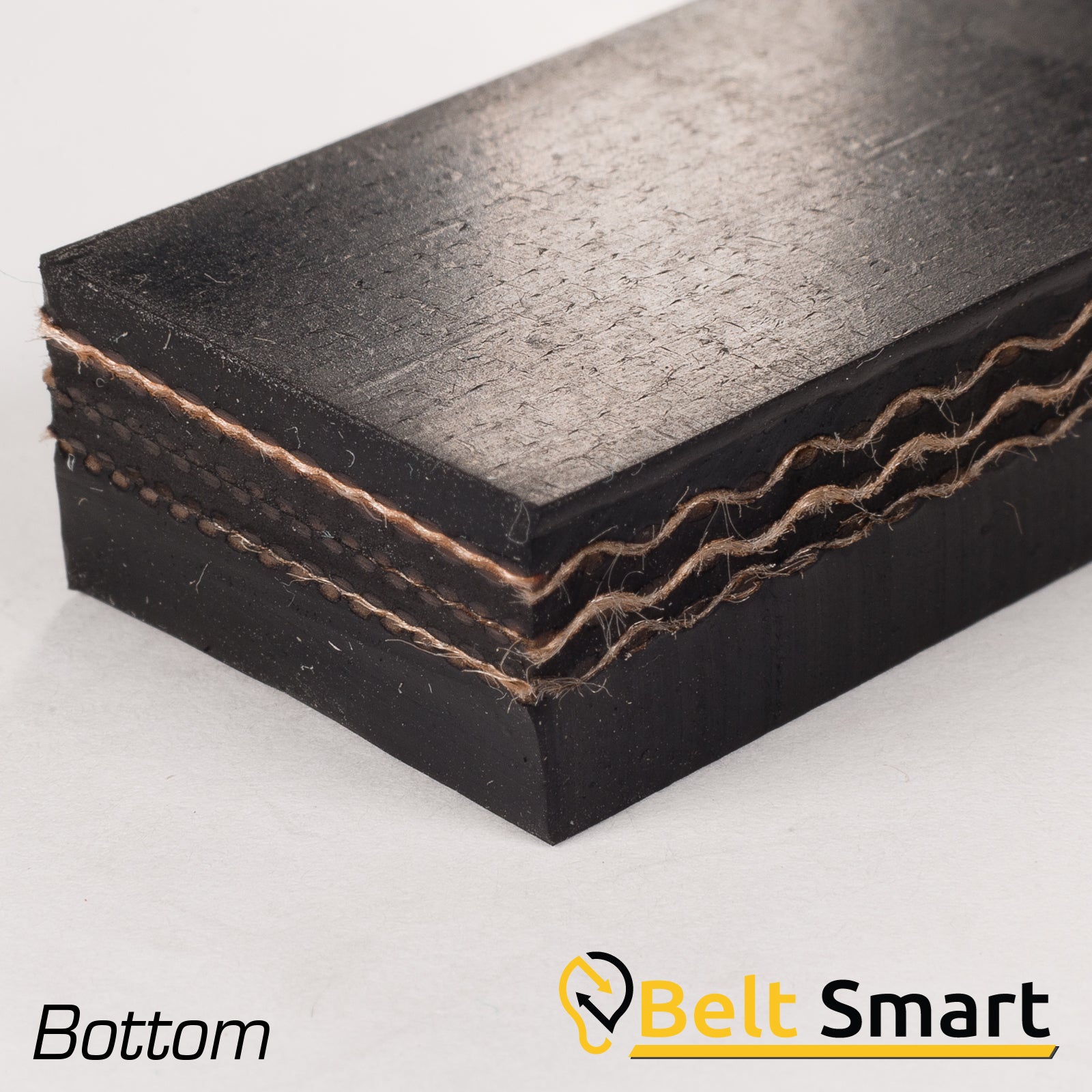

BS077A - #77a Beltservice 3 Ply 330 Black Belt 3/16" x 1/16" MOR-SC Conveyor Belt
Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.
Contact Us
Need a Conveyor Belt?
Please provide as much detail you can on your use case and one of our agents will respond ASAP
Applications: | |||
---|---|---|---|
|
|||
Features: | |||
|
2 Ply 160 Black 1/8" x Bare MOR Pt No.: 53 |
2 Ply 220 1/8" x 1/16" MOR-SC Pt No.: 74 |
3 Ply 225 1/8" x Bare MOR Pt No.: 75a |
2 Ply 220 3/16" x 1/16" MOR-SC Pt No.: 75b |
3 Ply 330 3/16" x 1/16" MOR-SC Pt No.: 77a |
3 Ply 330 3/32" x Bare MOR Pt No.: 77b |
3 Ply 330 3/16" x Bare MOR Pt No.: 77f |
3 Ply 600 3/16" x Bare MOR Pt No.: 80e |
|
---|---|---|---|---|---|---|---|---|
Thickness | 15/64" | 5/16" | 1/4" | 11/32" | 13/32" | 1/4" | N/A | N/A |
Covers | 1/8" x Bare | 1/8" x 1/16" | 1/8" x Bare | 3/16" x 1/16" | 3/16" x 1/16" | 3/32" x Bare | N/A | N/A |
Carcass | Polyester | Synthetic | N/A | N/A | ||||
Working Tension per Inch Width |
160 lbs. | 220 lbs. | 225 lbs. | 220 lbs. | 330 lbs. | 330 lbs. | N/A | N/A |
Approx. Weight Lbs. Per Inch Width |
.142 lbs. | .176 lbs. | .145 lbs. | .200 lbs. | .217 lbs. | .133 lbs. | N/A | N/A |
Min. Pulley Diameter Head |
N/A | 12" | 14" | 16" | 18" | 18" | N/A | N/A |
Min. Pulley Diameter Tail |
N/A | 10" | 10" | 10" | 12" | 12" | N/A | N/A |
Temperature Range | -25 deg. F / 225 deg. F | N/A | N/A | |||||
Compound | N/A | SBR/Nitrile | SBR/Nitrile | SBR/Nitrile | SBR/Nitrile | SBR/Nitrile | N/A | N/A |
Lacing/Fastener Recommendations |
Clipper Lace #4 1/2 Alligator Lace #27 Flexco Hinged #375, R5 Alligator Staple #187 |
Flexco Plate #140 Flexco Hinged #375 or #550 Flexco Rivet R5 |
Flexco Plate #140 Flexco Hinged #375 or #550 Flexco Rivet R5 |
Flexco Plate #190 Flexco Hinged #375 or #550 Flexco Rivet R5 |
Flexco Plate #190 Flexco Hinged #375 or #550 Flexco Rivet R5-1/2 |
Flexco Plate #140 Flexco Hinged #375 or #550 Flexco Rivet R5 |
N/A | N/A |
