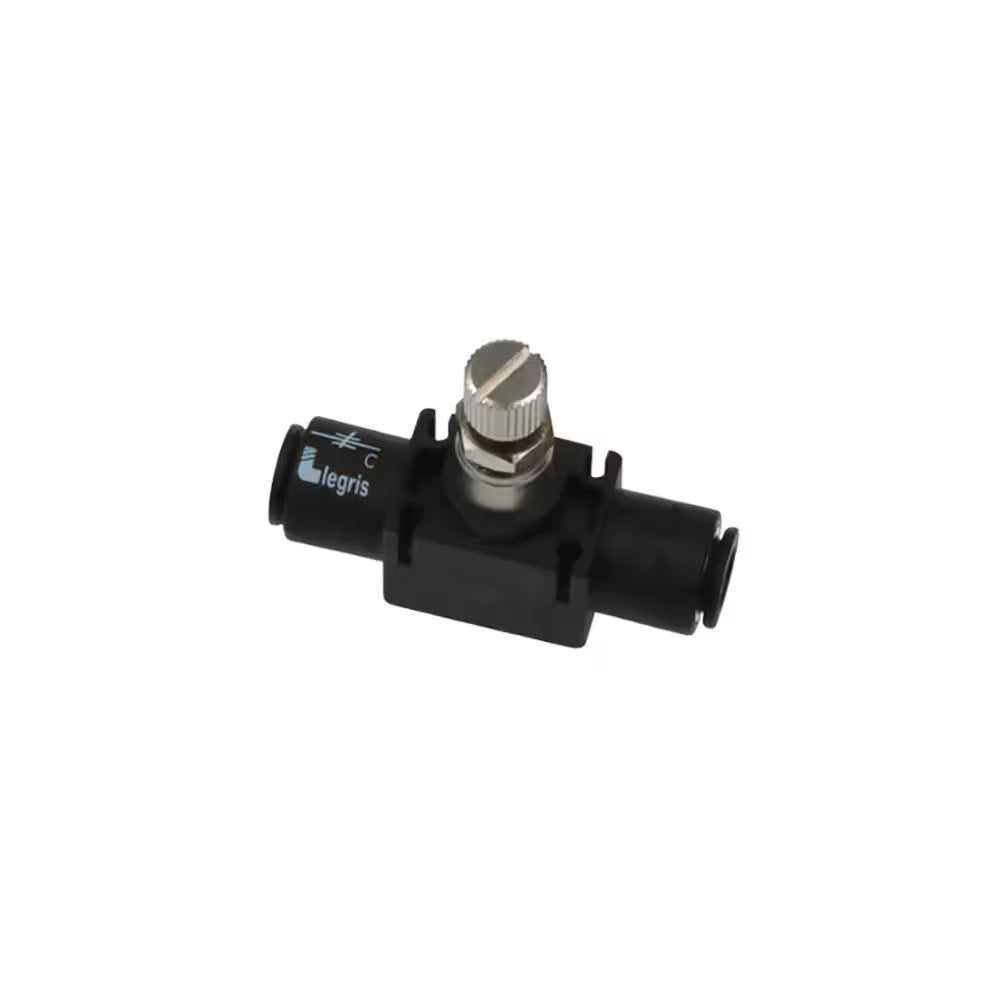

7772 08 00 by Parker | Legris Bi-Directional In-Line Flow Regulator | 8mm Tube Size | 11mm Hex | 58mm Length | Straight | Polymer | Pack of 5

7772 08 00 by Parker | Legris Bi-Directional In-Line Flow Regulator | 8mm Tube Size | 11mm Hex | 58mm Length | Straight | Polymer | Pack of 5

Sale price$287.78

by Parker Hannifin
Flow Control Regulators:7772 Bi-Directional In-Line Flow Regulator

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $270.51
15–29 $244.61
30+ $215.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7772 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F H (max) H (min) K L L1 N N1 ØT Kg
7772 04 00 4 mm 5 mm 33.5 mm 29.5 mm 12 mm 36 mm 15 mm 11 mm 8 mm 2.2 mm .009 Kg
7772 06 00 6 mm 8 mm 44.5 mm 40.5 mm 17 mm 51 mm 23 mm 17 mm 11 mm 3.2 mm .024 Kg
7772 08 00 8 mm 11 mm 52.5 mm 46.5 mm 18.5 mm 58 mm 26 mm 20 mm 12.5 mm 3.2 mm .054 Kg
