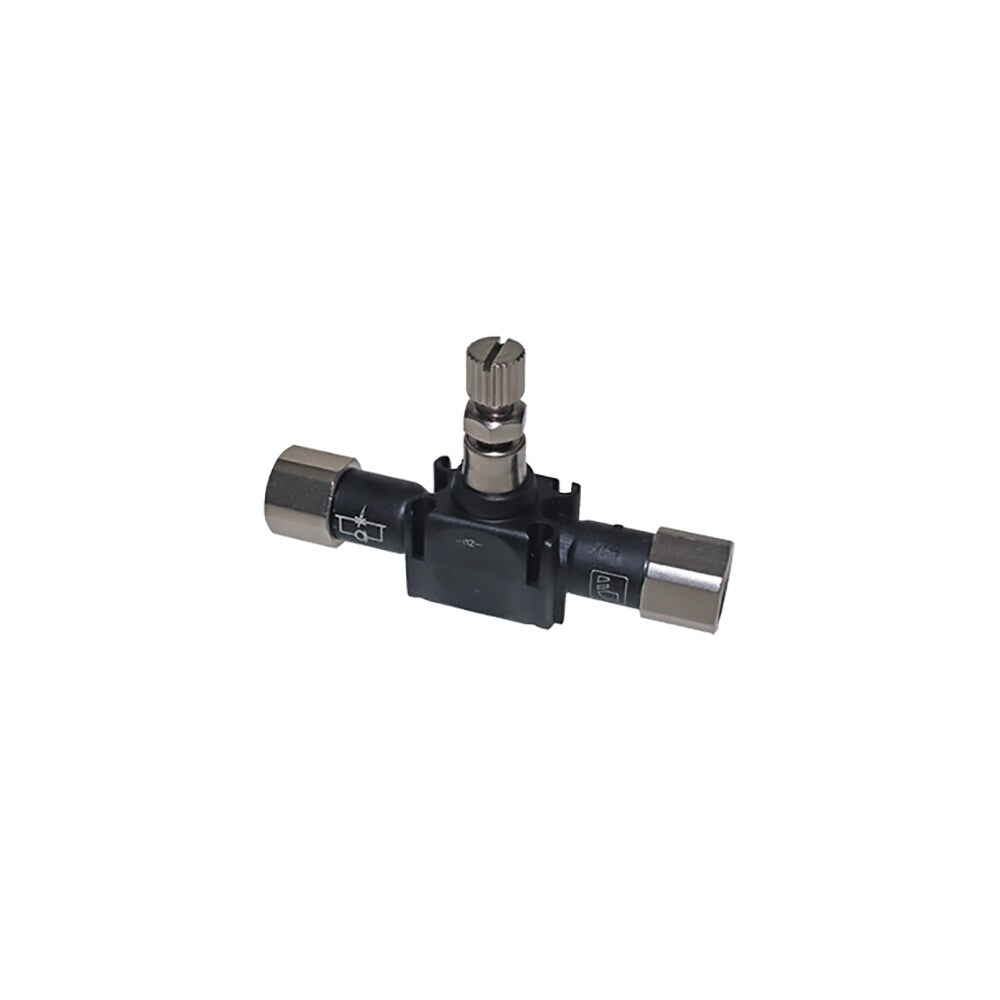

7771 21 21 by Parker | Legris In-Line One-Way Flow Regulator | 1/2" Tube Size | 24mm Hex | 121mm Length | Straight | Polymer

7771 21 21 by Parker | Legris In-Line One-Way Flow Regulator | 1/2" Tube Size | 24mm Hex | 121mm Length | Straight | Polymer

Sale price$71.35

by Parker Hannifin
Flow Control Regulators:7771 In-Line One-Way Flow Regulator, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
20–39 $67.07
40–79 $60.65
80+ $53.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7771 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Push-to-Connect
  • 1/2in Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F F1 H (max) H (min) L L1 N N1 ØT Kg
7771 10 10 1/8" 13 mm 8 mm 44.5 mm 39.5 mm 68.5 mm 23 mm 17 mm 11 mm 3.2 mm .043 Kg
7771 13 13 1/4" 16 mm 11 mm 50 mm 44 mm 83 mm 26 mm 20 mm 12.5 mm 3.2 mm .103 Kg
7771 17 17 3/8" 19 mm 14 mm 61 mm 52 mm 97 mm 33 mm 26 mm 16 mm 4.2 mm .160 Kg
7771 21 21 1/2" 24 mm 14 mm 67.5 mm 57.5 mm 121 mm 35 mm 27.5 mm 20 mm 4.2 mm .260 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
