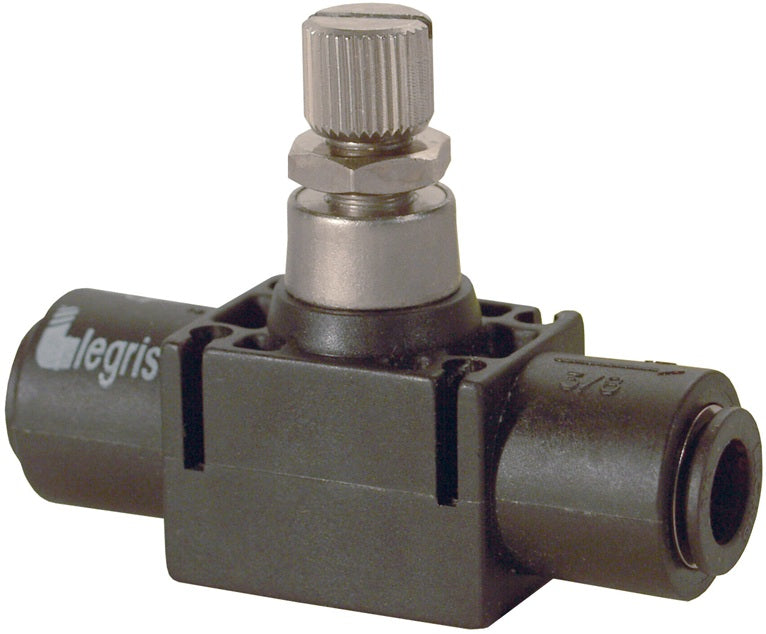

77700400 by Dixon Valve | Legris Push-to Connect In-Line Flow Control Valve | 5/32" Tube OD | Nylon

77700400 by Dixon Valve | Legris Push-to Connect In-Line Flow Control Valve | 5/32" Tube OD | Nylon

Sale price$57.73

Dixon Valve & Coupling
Legris Push-to Connect In-Line Flow Control Valve

Used where cylinder access is difficult or another fitting is attached to the cylinder port.
Buy More, Save More!
Quantity Price Each
10–39 $54.27
40–79 $49.07
80+ $43.30
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Legris
Shape:

Straight

Material(s):
  • Nylon
  • Nickel-Plated Brass
Features:
  • Working fluid: compressed air
  • Stackable using the two joining clips supplied or panel mountable using existing holes
  • One way
Materials:
  • Body: glass reinforced nylon 6.6
  • Seal: Nitrile
  • Gripping ring: stainless steel
  • Adjustment screw: nickel plated brass
  • Locking nut: nickel plated brass
Specifications:
  • Pressure range: 15 PSI to 145 PSI
  • Temperature range: 32°F to 158°F (0°C to 70°C)
Part Number Tube O.D.
77700400 5/32"
77705600 1/4"
77706000 3/8"
77706200 1/4"
