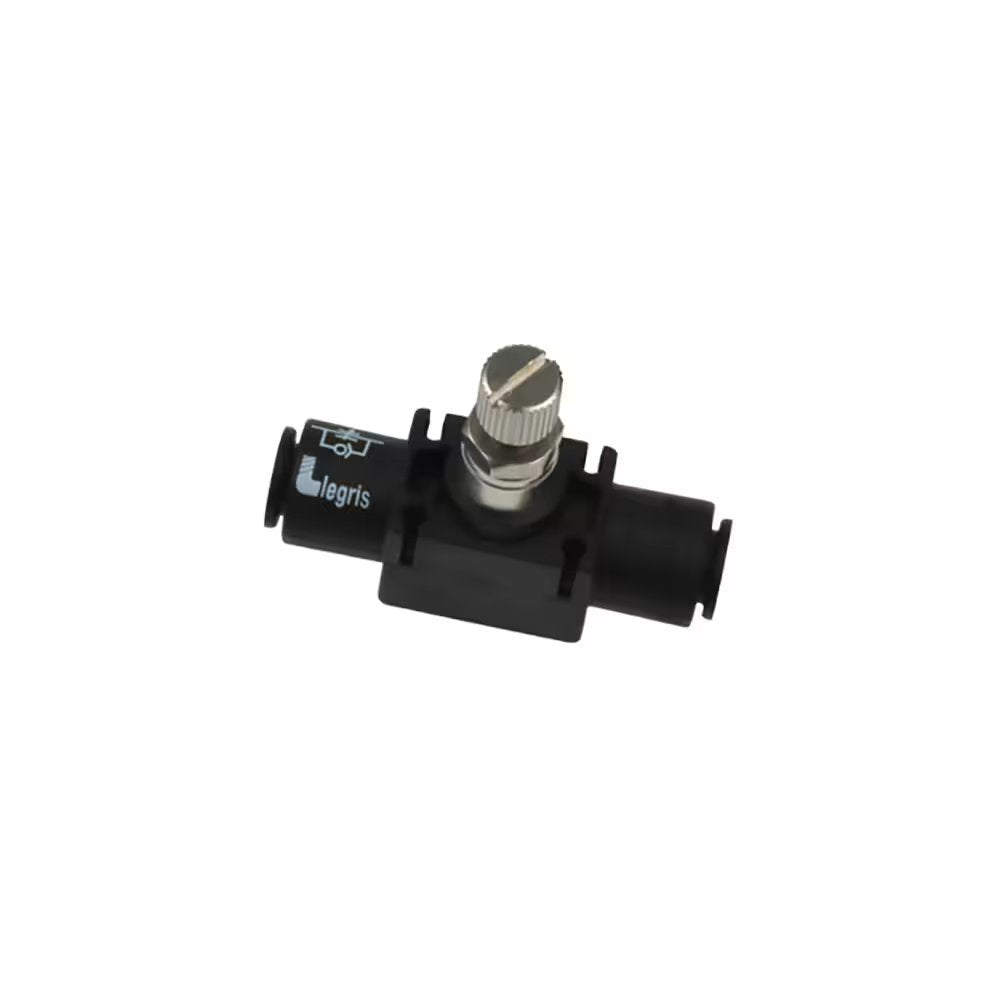

7770 12 00 by Parker | Legris In-Line One-Way Flow Regulator | 12mm Tube Size | 14mm Hex | 85mm Length | Straight | Polymer | Pack of 2
by Parker Hannifin
Flow Control Regulators:7770 In-Line One-Way Flow Regulator
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $111.74 |
| 30–59 | $101.04 |
| 60+ | $89.15 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | F | H (max) | H (min) | K | L | L1 | N | N1 | ØT | Kg |
| 7770 04 00 | 4 mm | 5 mm | 33.5 mm | 29.5 mm | 12 mm | 36 mm | 15 mm | 11 mm | 8 mm | 2.2 mm | .009 Kg |
| 7770 06 00 | 6 mm | 8 mm | 44.5 mm | 40.5 mm | 17 mm | 51 mm | 23 mm | 17 mm | 11 mm | 3.2 mm | .024 Kg |
| 7770 08 00 | 8 mm | 11 mm | 52.5 mm | 46.5 mm | 18.5 mm | 58 mm | 26 mm | 20 mm | 12.5 mm | 3.2 mm | .048 Kg |
| 7770 10 00 | 10 mm | 14 mm | 61 mm | 53 mm | 24 mm | 73 mm | 33 mm | 26 mm | 16 mm | 4.2 mm | .097 Kg |
| 7770 12 00 | 12 mm | 14 mm | 67.5 mm | 59 mm | 28 mm | 85 mm | 35 mm | 27.5 mm | 20 mm | 4.2 mm | .132 Kg |
