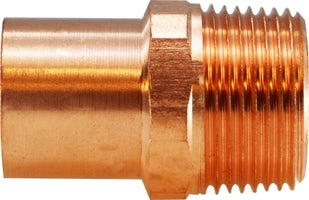

77334 (77-334) by Midland | Copper Fitting | Male Adapter | FTG x M | 1" ID x 1" ID | Straight
Midland Industries
Copper Fitting - Wrot Solder Joint - Male Adapter - FTG x M
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.62 |
| 40–79 | $19.55 |
| 80+ | $17.25 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Specifications and Approvals:
| Features: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
|||
| Symbol Of Joint Ends: | |||
|
The Above Conforms To ASTM B 88 & ASTM B 306, A 306.
| Crossover Series: | |
|---|---|
| WC-404 | 604-2 |
 |
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Joint Ends | Metal Thickness T (in) |
Inside Diameter O (in) |
|||||||||
| Male End | Female End | |||||||||||
| Outside Diameter A (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
Inside Diameter F (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
|||||
| 1/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 0 | 2/8" |
| 1/4" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 0 | 2/8" |
| 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 0 | 3/8" |
| 1/2" | 5/8" | 0.03mm | 5/8" | 5/8" | 4/8" | 5/8" | 0.03mm | 5/8" | 5/8" | 3/8" | 0 | 4/8" |
| 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 0 | 4/8" |
| 3/4" | 7/8" | 0.03mm | 7/8" | 7/8" | 6/8" | 7/8" | 0.03mm | 7/8" | 7/8" | 5/8" | 0 | 5/8" |
| Part Number | Nominal (ID) | Approx. Weight (Lbs.) |
IND # |
|---|---|---|---|
| 77331 (77-331) |
1/2" | 0.09 | W 01431 |
| 77333 (77-333) |
3/4" | 0.15 | W 01446 |
| 77334 (77-334) |
1" | 0.15 | W 01463 |
| 77335 (77-335) |
1-1/4" | 0.41 | W 01471 |
| 77336 (77-336) |
1-1/2" | 0.41 | W 0147X9 |
| 77337 (77-337) |
2" | 0.86 | W 01487 |
