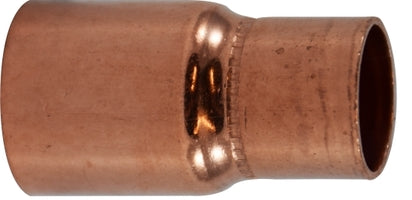

77294 (77-294) by Midland | Copper Fitting | Fitting Reducer | FTG x C | 1/2" ID x 1/4" ID | Straight
Minimum Order Quantity: 5 Units
Midland Industries
Copper Fitting - Wrot Solder Joint - Fitting Reducer - FTG x C
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $4.70 |
| 40–79 | $4.25 |
| 80+ | $3.75 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Specifications and Approvals:
| Features: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
|||
| Symbol Of Joint Ends: | |||
|
The Above Conforms To ASTM B 88 & ASTM B 306, A 306.
| Crossover Series: | |
|---|---|
| WC-403 | 600-2 |
 |
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Joint Ends | Metal Thickness T (in) |
Inside Diameter O (in) |
|||||||||
| Male End | Female End | |||||||||||
| Outside Diameter A (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
Inside Diameter F (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
|||||
| 1/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 0 | 2/8" |
| 1/4" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 0 | 2/8" |
| 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 0 | 3/8" |
| 1/2" | 5/8" | 0.03mm | 5/8" | 5/8" | 4/8" | 5/8" | 0.03mm | 5/8" | 5/8" | 3/8" | 0 | 4/8" |
| 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 0 | 4/8" |
| 3/4" | 7/8" | 0.03mm | 7/8" | 7/8" | 6/8" | 7/8" | 0.03mm | 7/8" | 7/8" | 5/8" | 0 | 5/8" |
| Part Number | Nominal (ID) | Approx. Weight (Lbs.) |
IND # |
|---|---|---|---|
| 77292 (77-292) |
3/8" x 1/8" | 0.01 | W 01314 |
| 77291 (77-291) |
3/8" x 1/4" | 0.02 | W 01312 |
| 77294 (77-294) |
1/2" x 1/4" | 0.03 | W 01317 |
| 77293 (77-293) |
1/2" x 3/8" | 0.03 | W 01315 |
| 77295 (77-295) |
5/8" x 1/2" | 0.03 | W 01320 |
| 77298 (77-298) |
3/4" x 3/8" | 0.05 | W 01327 |
| 77297 (77-297) |
3/4" x 1/2" | 0.06 | W 01326 |
| 77296 (77-296) |
3/4" x 5/8" | 0.08 | W 01325 |
| 77352 (77-352) |
1" x 1/2" | 0.10 | W 01265 |
| 77300 (77-300) |
1" x 3/4" | 0.11 | W 01337 |
| 77355 (77-355) |
1-1/4" x 3/4" | 0.15 | W 01345 |
| 77354 (77-354) |
1-1/4" x 1" | 0.17 | W 01343 |
| 77360 (77-360) |
1-1/2" x 1/2" | 0.21 | W 01355 |
| 77359 (77-359) |
1-1/2" x 3/4" | 0.21 | W 01353 |
| 77358 (77-358) |
1-1/2" x 1" | 0.22 | W 01351 |
| 77357 (77-357) |
1-1/2" x 1-1/4" | 0.21 | W 01350 |
| 77365 (77-365) |
2" x 1/2" | 0.44 | W 01364 |
| 77363 (77-363) |
2" x 1" | 0.40 | W 01360 |
| 77361 (77-361) |
2" x 1-1/2" | 0.39 | W 01358 |
