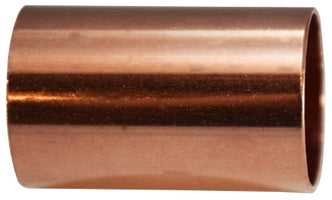

77226 (77-226) by Midland | Copper Fitting | Coupling (Socket) Less Tube Stop | C x C | 1-1/2" ID | Straight
Midland Industries
Copper Fitting - Wrot Solder Joint - Coupling (Socket) Less Tube Stop - C x C
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.87 |
| 40–79 | $15.26 |
| 80+ | $13.46 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Specifications and Approvals:
| Features: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
|||
| Symbol Of Joint Ends: | |||
|
The Above Conforms To ASTM B 88 & ASTM B 306, A 306.
| Crossover Series: | |
|---|---|
| WC-400NS | 601 |
 |
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Joint Ends | Metal Thickness T (in) |
Inside Diameter O (in) |
|||||||||
| Male End | Female End | |||||||||||
| Outside Diameter A (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
Inside Diameter F (in) |
Average Tolerance (mm) |
Actual MIN (in) |
O.D. MAX (in) |
|||||
| 1/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 2/8" | 0.03mm | 2/8" | 2/8" | 3/8" | 0 | 2/8" |
| 1/4" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 3/8" | 0.03mm | 3/8" | 3/8" | 3/8" | 0 | 2/8" |
| 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 4/8" | 0.03mm | 4/8" | 4/8" | 3/8" | 0 | 3/8" |
| 1/2" | 5/8" | 0.03mm | 5/8" | 5/8" | 4/8" | 5/8" | 0.03mm | 5/8" | 5/8" | 3/8" | 0 | 4/8" |
| 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 6/8" | 0.03mm | 6/8" | 6/8" | 5/8" | 0 | 4/8" |
| 3/4" | 7/8" | 0.03mm | 7/8" | 7/8" | 6/8" | 7/8" | 0.03mm | 7/8" | 7/8" | 5/8" | 0 | 5/8" |
| Part Number | Nominal (ID) | Approx. Weight (Lbs.) |
IND # |
|---|---|---|---|
| 77219 (77-219) |
1/8" | 0.01 | W 01900 |
| 77220 (77-220) |
1/4" | 0.01 | W 01901 |
| 77222 (77-222) |
1/2" | 0.03 | W 01903 |
| 77223 (77-223) |
3/4" | 0.06 | W 01905 |
| 77224 (77-224) |
1" | 0.10 | W 01906 |
| 77225 (77-225) |
1-1/4" | 0.15 | W 01907 |
| 77226 (77-226) |
1-1/2" | 0.22 | W 01908 |
