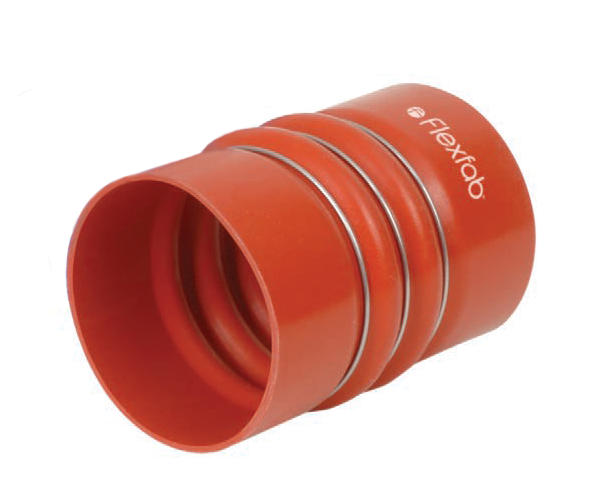

7716 by FlexFab | 4-ply Charge Air Connector (CAC) Hot Side | 4.00" ID | 4.23" OD | 7" Overall Length
Buy more, save moreDiscounts applied in cart/checkout.
Charge Air Connectors
Charge Air Connectors — Hot & Cold Side
Convoluted silicone charge air connector (CAC) hose with stainless steel pressure retention rings — 4-ply meta-aramid for the hot side, 3-ply polyester for the cold side.
1
What are these connectors used for?
- Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold (hot side and cold side)
2
What are the key specifications?
Hot Side Construction
4-ply silicone-coated meta-aramid fabric with stainless steel pressure retention rings
Cold Side Construction
3-ply silicone-coated polyester fabric with stainless steel pressure retention rings
Hot Side Temperature Range
-65°F (-54°C) to +500°F (+260°C)
Cold Side Temperature Range
-65°F (-54°C) to +350°F (+177°C)
Hot Side Wall Thickness
.085" / .135"
Cold Side Wall Thickness
.084" / .130"
3
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Overall Length | Convolutes (Humps) | Stainless Steel Rings | Max. Operating Pressure | Weight | T-Bolt Clamp | Constant Tension Clamp |
|---|---|---|---|---|---|---|---|---|---|
| Hot Side | |||||||||
| 7887 | 2.50" | 2.73" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2583-0250 | FLX2584-0312 |
| 7731-0001 | 3.00" | 3.23" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2583-0300 | FLX2584-0362 |
| 7732-0001 | 3.50" | 3.73" | 6.00" | 2 | 3 | 55 PSI | 0.5 lbs | FLX2583-0350 | FLX2584-0412 |
| 7717 | 3.50" | 3.73" | 7.50" | 2 | 3 | 55 PSI | 0.5 lbs | FLX2583-0350 | FLX2584-0462 |
| 7715-0002 | 4.00" | 4.23" | 6.00" | 2 | 3 | 50 PSI | 0.5 lbs | FLX2583-0400 | FLX2584-0462 |
| 7723 | 4.00" | 4.23" | 6.00" | 1 | 2 | 50 PSI | 0.5 lbs | FLX2583-0400 | FLX2584-0462 |
| 1020-0001 | 4.00" | 4.23" | 6.50" | 2 | 3 | 50 PSI | 0.5 lbs | FLX2583-0400 | FLX2584-0462 |
| 7716 | 4.00" | 4.23" | 7.00" | 2 | 3 | 50 PSI | 0.6 lbs | FLX2583-0400 | FLX2584-0462 |
| 7728 | 4.00" | 4.23" | 7.50" | 2 | 3 | 50 PSI | 0.6 lbs | FLX2583-0400 | FLX2584-0462 |
| 7727-0001 | 4.00" | 4.23" | 8.00" | 2 | 3 | 50 PSI | 0.7 lbs | FLX2583-0400 | FLX2584-0462 |
| 7742-0001 | 4.50" | 4.73" | 6.00" | 2 | 3 | 45 PSI | 0.5 lbs | FLX2583-0450 | FLX2584-0512 |
| 7797 | 5.00" | 5.23" | 6.00" | 2 | 3 | 35 PSI | 0.5 lbs | FLX2583-0500 | FLX2584-0562 |
| Cold Side | |||||||||
| 7758-0001 | 3.00" | 3.23" | 6.00" | 2 | 3 | 60 PSI | 0.5 lbs | FLX2583-0300 | FLX2584-0362 |
| 7753-0001 | 3.50" | 3.73" | 6.00" | 2 | 3 | 55 PSI | 0.5 lbs | FLX2583-0350 | FLX2584-0412 |
| 7755-0002 | 4.00" | 4.23" | 6.00" | 2 | 3 | 50 PSI | 0.5 lbs | FLX2583-0400 | FLX2584-0462 |
| 7759-0001 | 4.50" | 4.73" | 6.00" | 2 | 3 | 45 PSI | 0.5 lbs | FLX2583-0450 | FLX2584-0512 |
Specifications for reference only. Specific test data available on request.
Additional Product Data:
Shape:
Straight
Material(s):
