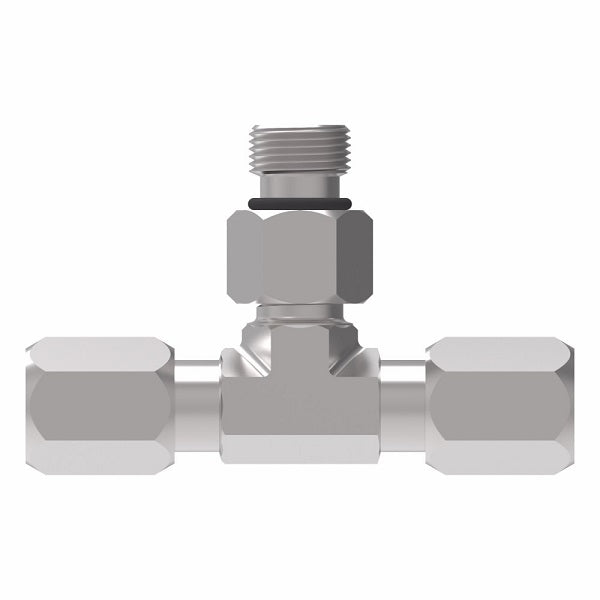

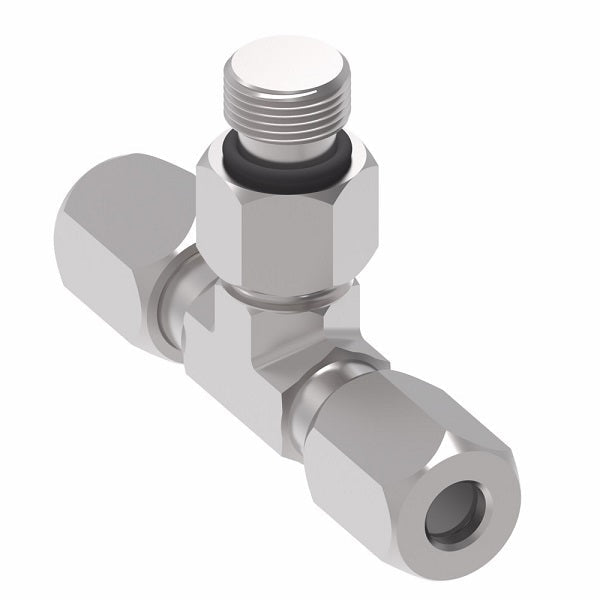

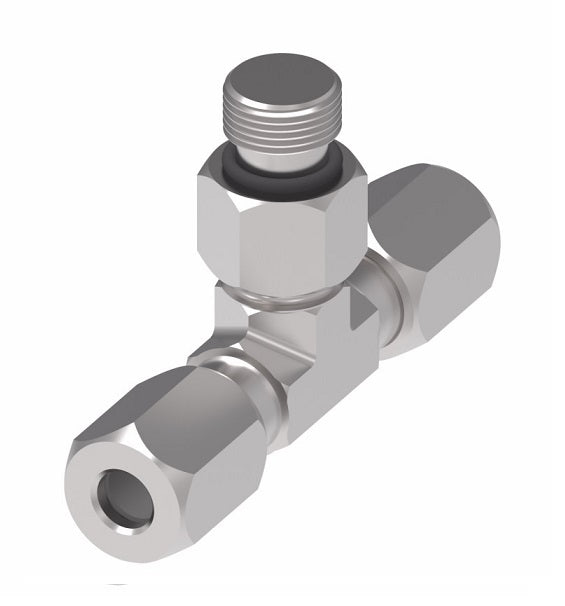

7715X4 Ermeto by Danfoss | 7000 Series | Male ORB Branch/Tube Tee | 1/4" Tube OD x 1/4" Tube OD x 1/4" Male O-Ring Boss | Steel
7715X4 Ermeto by Danfoss | 7000 Series | Male ORB Branch/Tube Tee | 1/4" Tube OD x 1/4" Tube OD x 1/4" Male O-Ring Boss | Steel
7715X4 Ermeto by Danfoss | 7000 Series | Male ORB Branch/Tube Tee | 1/4" Tube OD x 1/4" Tube OD x 1/4" Male O-Ring Boss | Steel

7715X4 Ermeto by Danfoss | 7000 Series | Male ORB Branch/Tube Tee | 1/4" Tube OD x 1/4" Tube OD x 1/4" Male O-Ring Boss | Steel

Sale price$34.08
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080429
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male O-Ring Boss
7715X4 - 1/4" 1/4"
7715X6 B7715X6 3/8" 3/8"
7715X8 B7715X8 3/4" 3/4"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • 1/4in Male O-Ring Boss
  • Some Ends Match
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
