76XL100 by Bestorq | XL Trapezoidal Timing Belt | 76XL Section | 38 Teeth | 1.00" Width

76XL100 by Bestorq | XL Trapezoidal Timing Belt | 76XL Section | 38 Teeth | 1.00" Width

Sale price$12.48
Quantity Price Each
50–99 $11.23
100+ $9.98
Discounts applied at checkout.

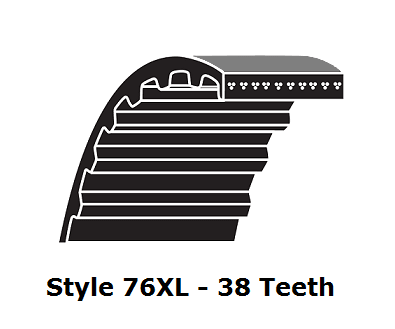

Timing Belt Sizes - Trapezoidal Timing Belts - XL Style - 76XL: 38 Teeth

Product Data:

Series:
  • XL Trapezoidal Timing Belt
Belt Tooth Count:

38 Teeth

Belt Cross Section:

76XL

Overview:
  • Trapezoidal Tooth timing belts are high capacity industrial timing belts. They offer a reliable, economical and trouble-free alternative to chain drives. Compared to chain drives, Trapezoidal Tooth timing belts are cleaner, lube-free, quieter and lower in cost. Trapezoidal Tooth timing belts offer excellent performance.
Features:
  • The belts feature high temperature chloroprene polymer throughout. The high performance, woven, nylon based, fabric facing material has been engineered and tested for highly wear resistant performance. Thebacking is precision ground for smooth uniform running. The helically wound tensile cords are speciallyengineered, twisted and chemically set stranded fiberglass material.
Specifications:
  • The Trapezoidal Tooth timing belts exceed USA RMA Standard IP-24 ratings levels and compare to the premium manufacturers ratings for Trapezoidal Tooth Timing belt Horsepower Ratinglevels.

Part Number Tooth Pitch
Pb
(in.)		 Belt Thickness
hs
(in.)		 Tooth Depth
ht
(in.)		 Angle
?
(deg.)		 Number of Teeth Pitch Length
(in.)		 Width
(in.)
76XL025 0.200" 0.090" 0.050" 50 38 7.60" 0.25"
76XL037 0.200" 0.090" 0.050" 50 38 7.60" 0.37"
76XL100 0.200" 0.090" 0.050" 50 38 7.60" 1.00"
