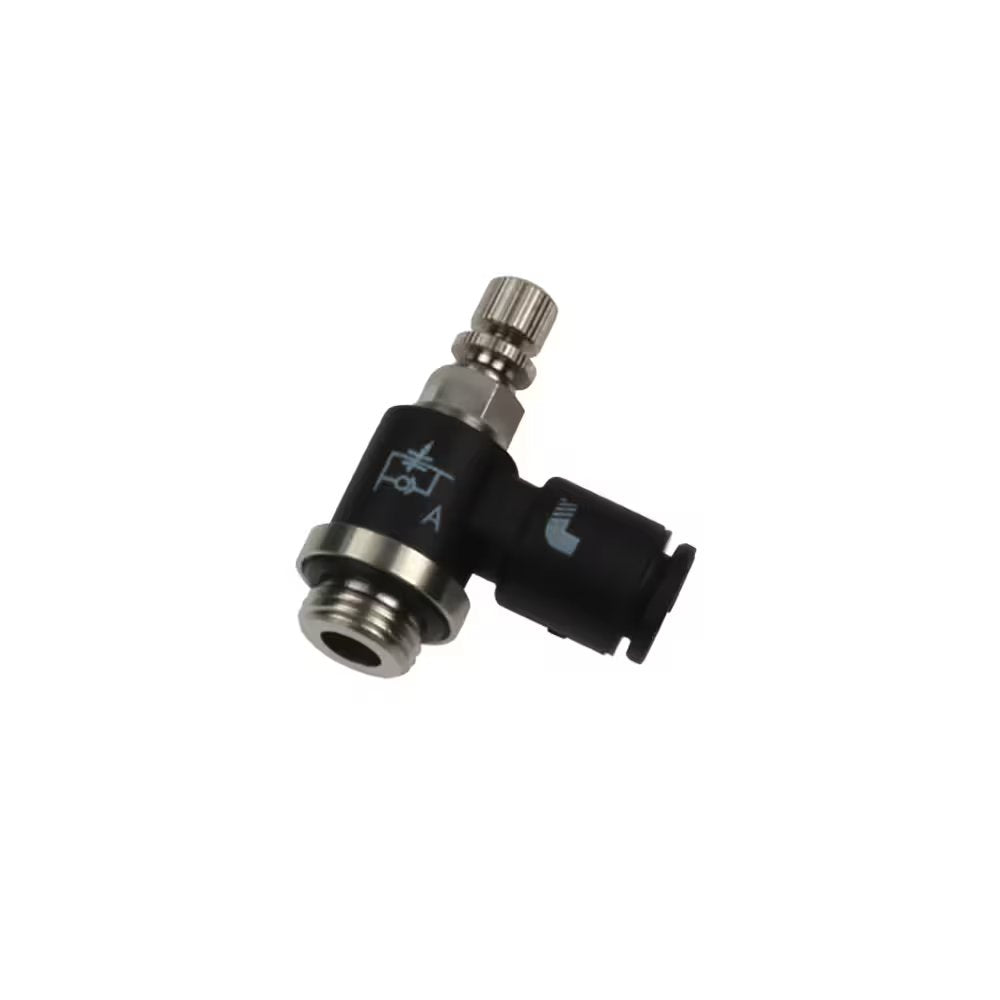

7669 53 20 by Parker | Legris Miniature Flow Control - Meter Out | 1/8" Push-to-Connect x 10-32 Male UNF Thread | 6 mm Hex | 90° Elbow | Nylon | Pack of 10

7669 53 20 by Parker | Legris Miniature Flow Control - Meter Out | 1/8" Push-to-Connect x 10-32 Male UNF Thread | 6 mm Hex | 90° Elbow | Nylon | Pack of 10

Sale price$229.63

by Parker Hannifin
Miniature Flow Controls:7660/7669 - miniature flow control fractional inch tube to UNF

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $215.85
30–59 $195.19
60+ $172.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7669 Series
Shape:

90° Elbow

Material(s):
  • Glass-Reinforced Nylon
  • Stainless Steel
  • Nickel-Plated Brass
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number (Meter Out) Part Number (Meter In) ØD UNF (C) F H (min) H1 (max) J L Oz
7660 53 20 7669 53 20 1/8" 10-32 6 mm .91" 1.14" .35" .67" .23 Oz
7660 04 20 7669 04 20 5/32" 10-32 6 mm .93" 1.02" .35" .67" .23 Oz
7660 56 20 7669 56 20 5/32" 10-32 6 mm .93" 1.02" .35" .73" .25 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Explore Parker Fluid System Connectors Division
