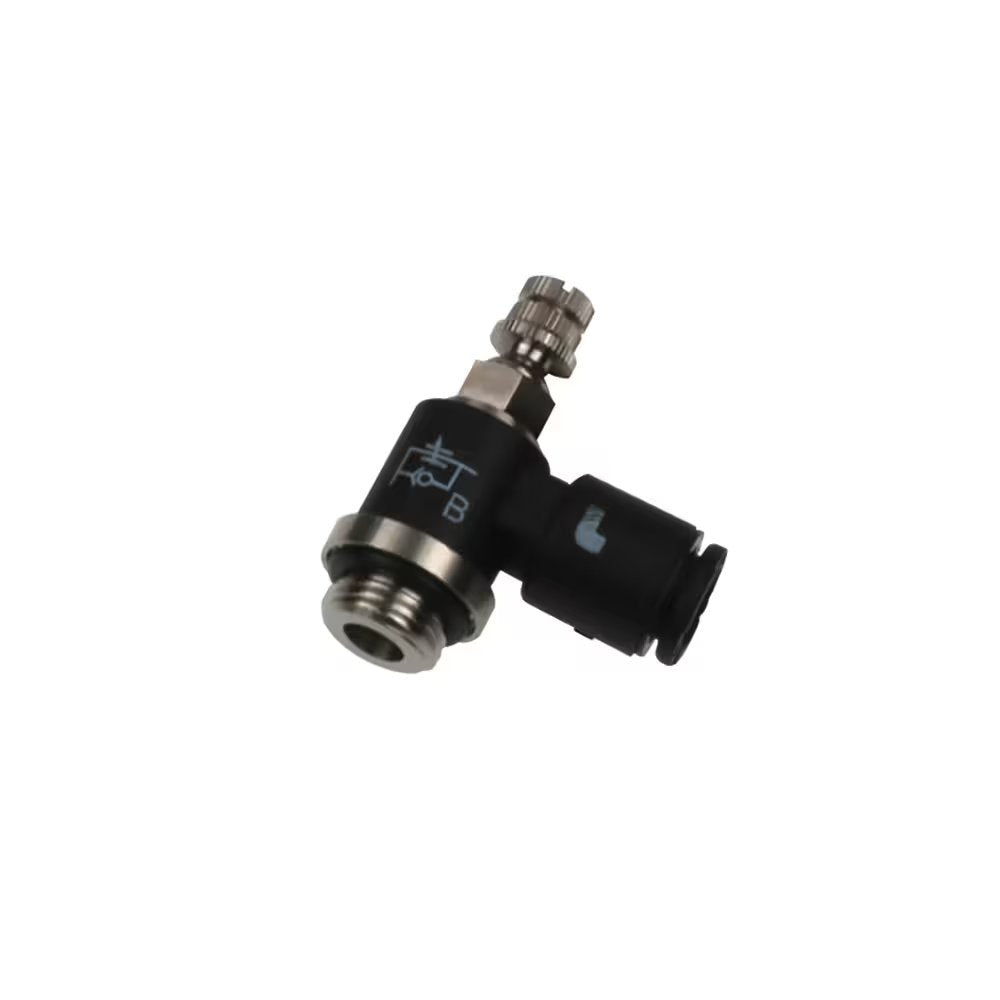

7669 06 13 by Parker | Legris Miniature Flow Regulator Supply | 6mm Tube Size x 1/4" Male BSPP Thread | 8mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
Flow Control Regulators:7669 Miniature Flow Regulator Supply, Male BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $236.86 |
| 15–29 | $214.18 |
| 30+ | $188.99 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H (max) | H (min) | L | L1 | Kg |
| 7669 03 09 | 3 mm | M3x0.5 | 6 mm | 9 mm | 26.5 mm | 24 mm | 17 mm | 4.5 mm | .008 Kg |
| 7669 03 19 | 3 mm | M5x0.8 | 6 mm | 9 mm | 27.5 mm | 25 mm | 17 mm | 4.5 mm | .007 Kg |
| 7669 04 19 | 4 mm | M5x0.8 | 6 mm | 9 mm | 27.5 mm | 25 mm | 17 mm | 4 mm | .006 Kg |
| 7669 04 10 | 4 mm | 1/8" | 7 mm | 11.5 mm | 31 mm | 28 mm | 18 mm | 6 mm | .012 Kg |
| 7669 06 19 | 6 mm | M5x0.8 | 6 mm | 9 mm | 27 mm | 23.5 mm | 18 mm | 4.5 mm | .007 Kg |
| 7669 06 10 | 6 mm | 1/8" | 7 mm | 11.5 mm | 31 mm | 28 mm | 18.5 mm | 6 mm | .012 Kg |
| 7669 06 13 | 6 mm | 1/4" | 8 mm | 12 mm | 34 mm | 30.5 mm | 19 mm | 6 mm | .019 Kg |
| 7669 08 10 | 8 mm | 1/8" | 13 mm | 14 mm | 32 mm | 29 mm | 26 mm | 7 mm | .021 Kg |
| 7669 08 13 | 8 mm | 1/4" | 16 mm | 19 mm | 33.5 mm | 29.5 mm | 27.5 mm | 9.5 mm | .032 Kg |
| 7669 08 17 | 8 mm | 3/8" | 20 mm | 23 mm | 41 mm | 37 mm | 29 mm | 11.5 mm | .063 Kg |
