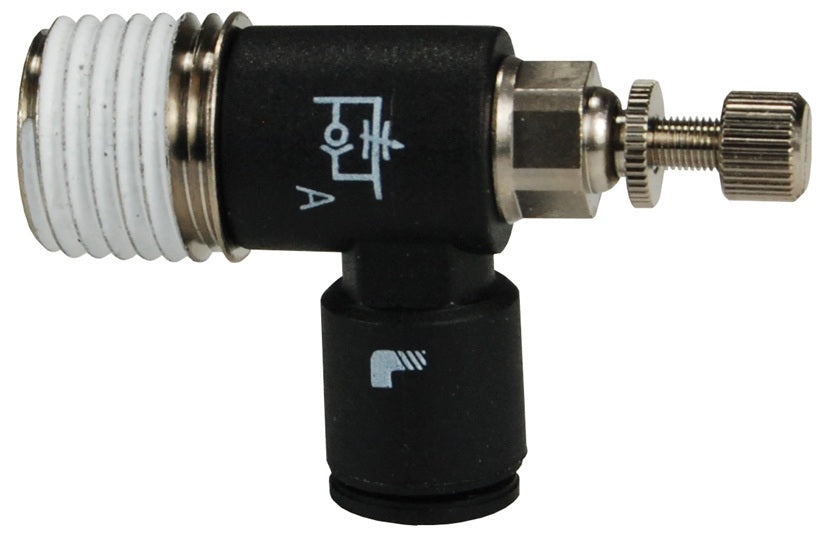

76655611 by Dixon Valve | Legris Push-to Connect Flow Control Valve | Miniature Exhaust | 1/4" Tube OD x 1/8" Male NPF | Nylon

76655611 by Dixon Valve | Legris Push-to Connect Flow Control Valve | Miniature Exhaust | 1/4" Tube OD x 1/8" Male NPF | Nylon

Sale price$37.80

Dixon Valve & Coupling
Legris Push-to Connect Flow Control Valve | Miniature Exhaust

Controls the speed of a cylinder by regulating air exhaust.

Exhaust air is metered out through a specially designed fine adjustment screw.
Buy More, Save More!
Quantity Price Each
10–39 $35.53
40–79 $32.13
80+ $28.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Legris
Shape:

90 Degree

Material(s):
  • Nylon
Features:
  • Push-to-connect
  • Meter out flow control
  • One-piece design
Materials:
  • Body: Glass Reinforced Nylon 6.6
  • Seal: Nitrile
Specifications:
  • Control pressure range: 15 PSI to 145 PSI
  • Temperature range: 30°F to 158°F (-1°C to 70°C)
Part Number Tube O.D. Thread
76600420 5/32" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
76650411 5/32" 1/8" Male NPT
76605620 1/4" 10-32 Male UNF Straight Thread
(Supplied with Gasket)
76655611 1/4" 1/8" Male NPT
76655614 1/4" 1/4" Male NPT
