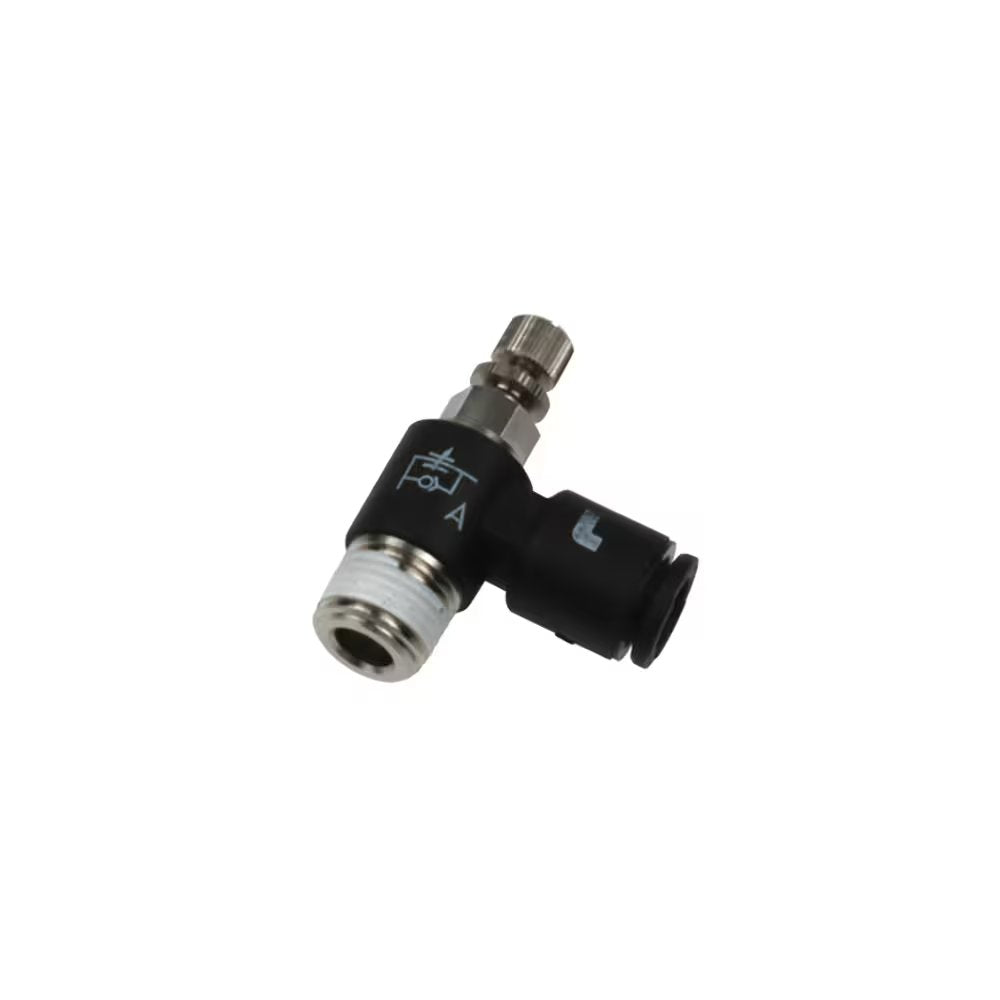

7665 08 13 by Parker | Legris Miniature Flow Regulator Exhaust | 8mm Tube Size x 1/4" Male BSPT Thread | 16mm Hex | 90° Elbow | Polymer | Pack of 10

7665 08 13 by Parker | Legris Miniature Flow Regulator Exhaust | 8mm Tube Size x 1/4" Male BSPT Thread | 16mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$280.14

by Parker Hannifin
Flow Control Regulators:7665 Miniature Flow Regulator Exhaust, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $263.33
15–29 $238.12
30+ $210.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7665 Series
Shape:

90° Elbow

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F G H (max) H (min) L L1 Kg
7665 04 10 4 mm 1/8" 7 mm 11.5 mm 27.5 mm 25 mm 18 mm 6 mm .012 Kg
7665 06 10 6 mm 1/8" 7 mm 11.5 mm 27.5 mm 25 mm 18.5 mm 6 mm .012 Kg
7665 06 13 6 mm 1/4" 8 mm 13.5 mm 30 mm 27.5 mm 19 mm 7 mm .019 Kg
7665 06 17 6 mm 3/8" 17 mm 13.5 mm 34 mm 31.5 mm 19 mm 7 mm .025 Kg
7665 08 10 8 mm 1/8" 7 mm 13 mm 14 mm 24 mm 26 mm 7 mm .021 Kg
7665 08 13 8 mm 1/4" 16 mm 19 mm 29 mm 25 mm 24.5 mm 9.5 mm .033 Kg
7665 08 17 8 mm 3/8" 20 mm 23 mm 36 mm 30 mm 29 mm 11.5 mm .061 Kg

Pre-coated thread
