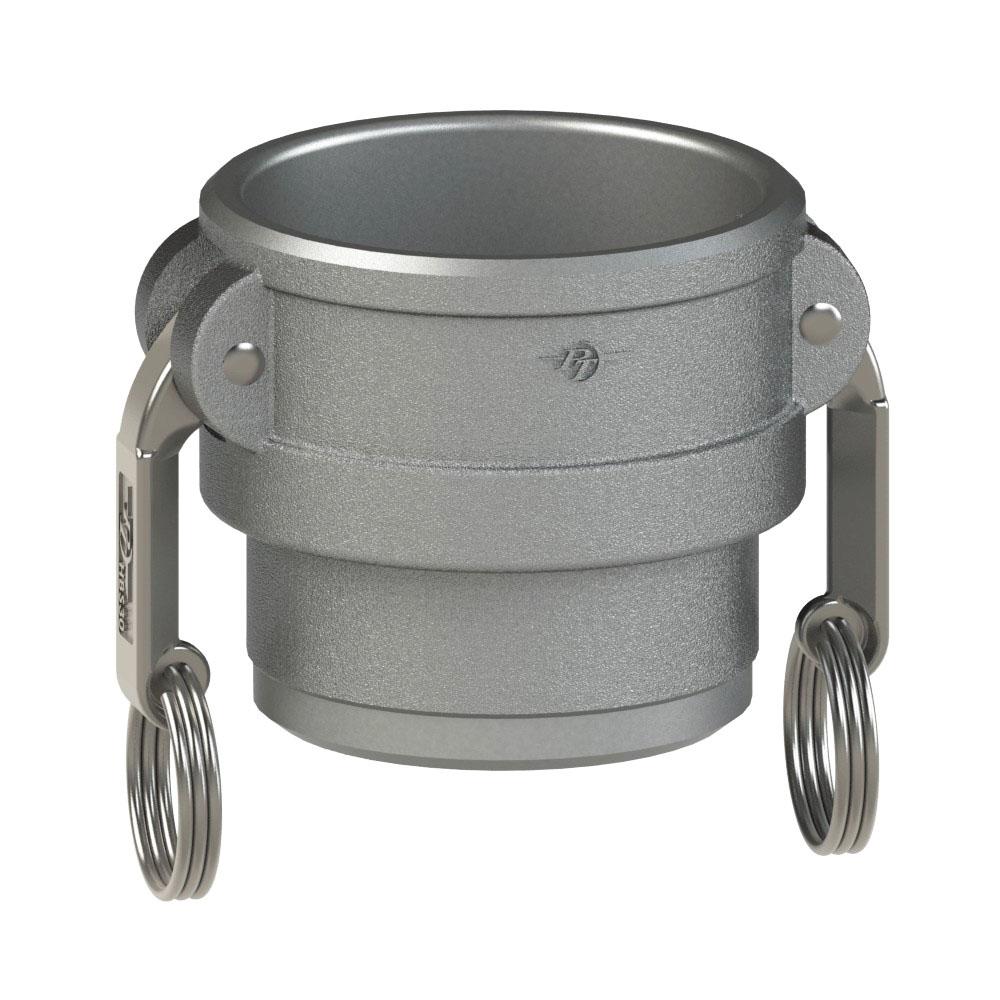

76622005 (20DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 2" Coupler x Butt Weld for Schedule 10 Pipe | Hastelloy C

76622005 (20DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 2" Coupler x Butt Weld for Schedule 10 Pipe | Hastelloy C

Sale price$743.28

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for Schedule 10 Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $698.68
15–29 $631.79
30+ $557.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 2in Female Cam & Groove
  • 2in Weld End
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Max. Allowable
Working Press.
(PSI)*
15DWB 76621506 1-1/2" 7.16" 3.56" 1.54" 2.81" 250 PSI
20DWB 76622005 2" 7.54" 3.94" 1.75" 3.09" 250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
