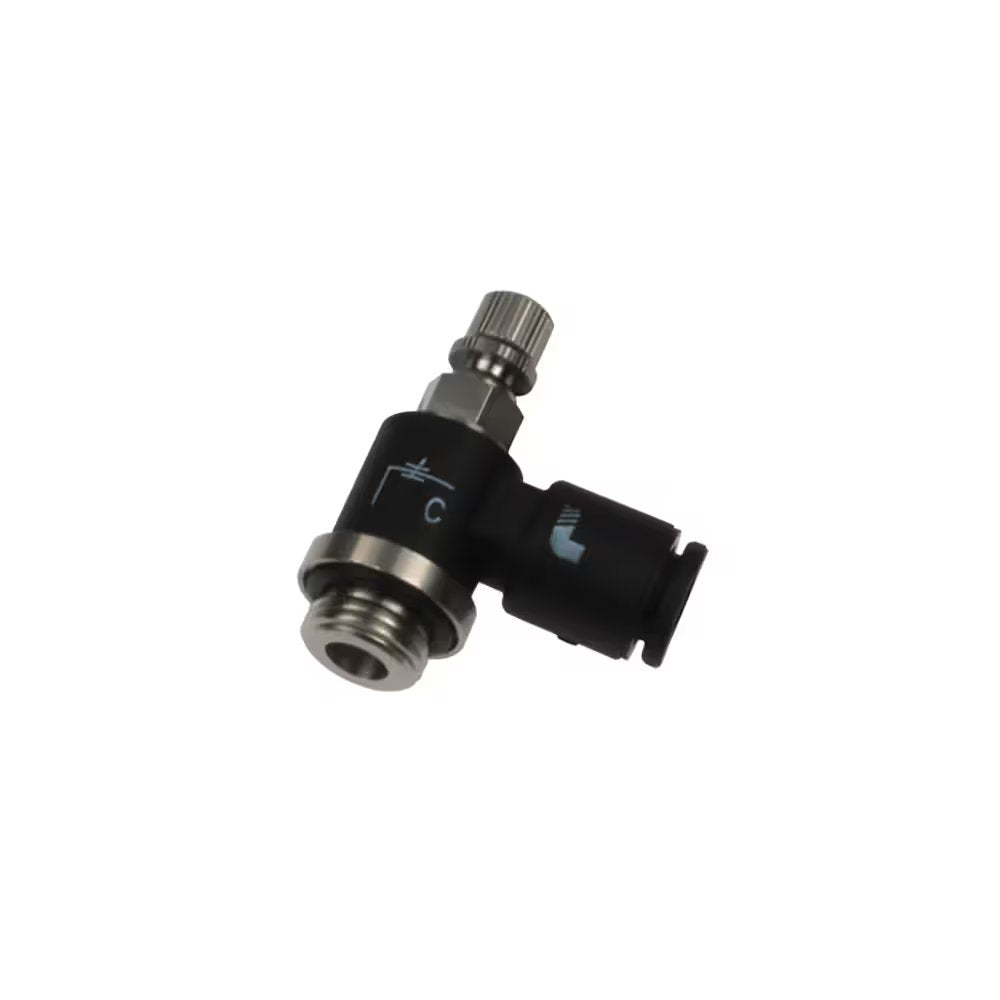

7662 04 10 by Parker | Legris Bi-Directional Miniature Flow Regulator | 4mm Tube Size x 1/8" Male BSPP Thread | 7mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
Flow Control Regulators:7662 Bi-Directional Miniature Flow Regulator, Male BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $168.75 |
| 30–59 | $152.59 |
| 60+ | $134.64 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H (max) | H (min) | L | L1 | Kg |
| 7662 04 19 | 4 mm | M5x0.8 | 6 mm | 9 mm | 26 mm | 23.5 mm | 17 mm | 4.5 mm | .007 Kg |
| 7662 04 10 | 4 mm | 1/8" | 7 mm | 11.5 mm | 29.5 mm | 27 mm | 18 mm | 6 mm | .013 Kg |
| 7662 06 19 | 6 mm | M5x0.8 | 6 mm | 9 mm | 26 mm | 23.5 mm | 18 mm | 4.5 mm | .010 Kg |
| 7662 06 10 | 6 mm | 1/8" | 7 mm | 11.5 mm | 29.5 mm | 27 mm | 18.5 mm | 6 mm | .013 Kg |
| 7662 06 13 | 6 mm | 1/4" | 8 mm | 12 mm | 32.5 mm | 30 mm | 19 mm | 6 mm | .019 Kg |
