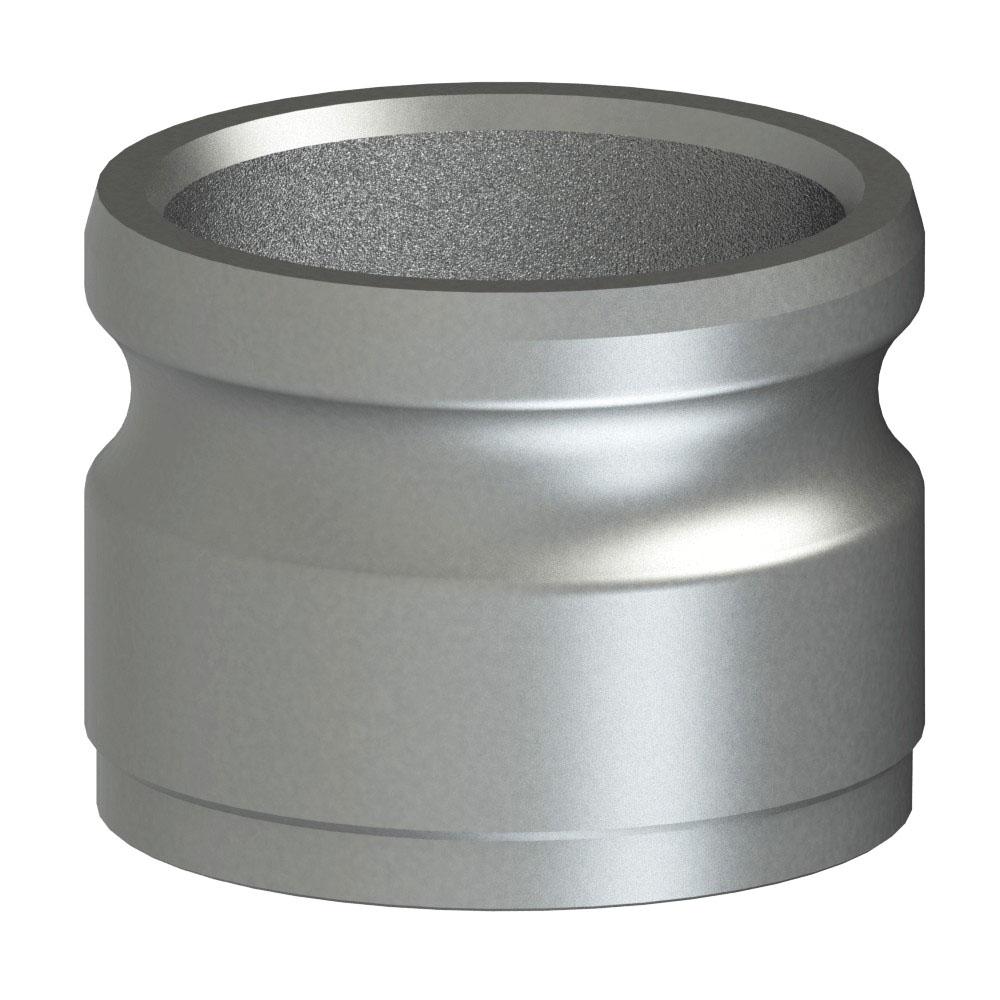

76601506 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

76601506 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Sale price$381.95

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $359.03
15–29 $324.66
30+ $286.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 1-1/2in Male Cam & Groove
  • 1-1/2in Weld End
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
10AWB 76601002 1" 1.74" 0.88" 250 PSI
15AWB 76601506 1-1/2" 2.06" 1.25" 250 PSI
30AWB 76603011 3" 2.75" 2.81" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
