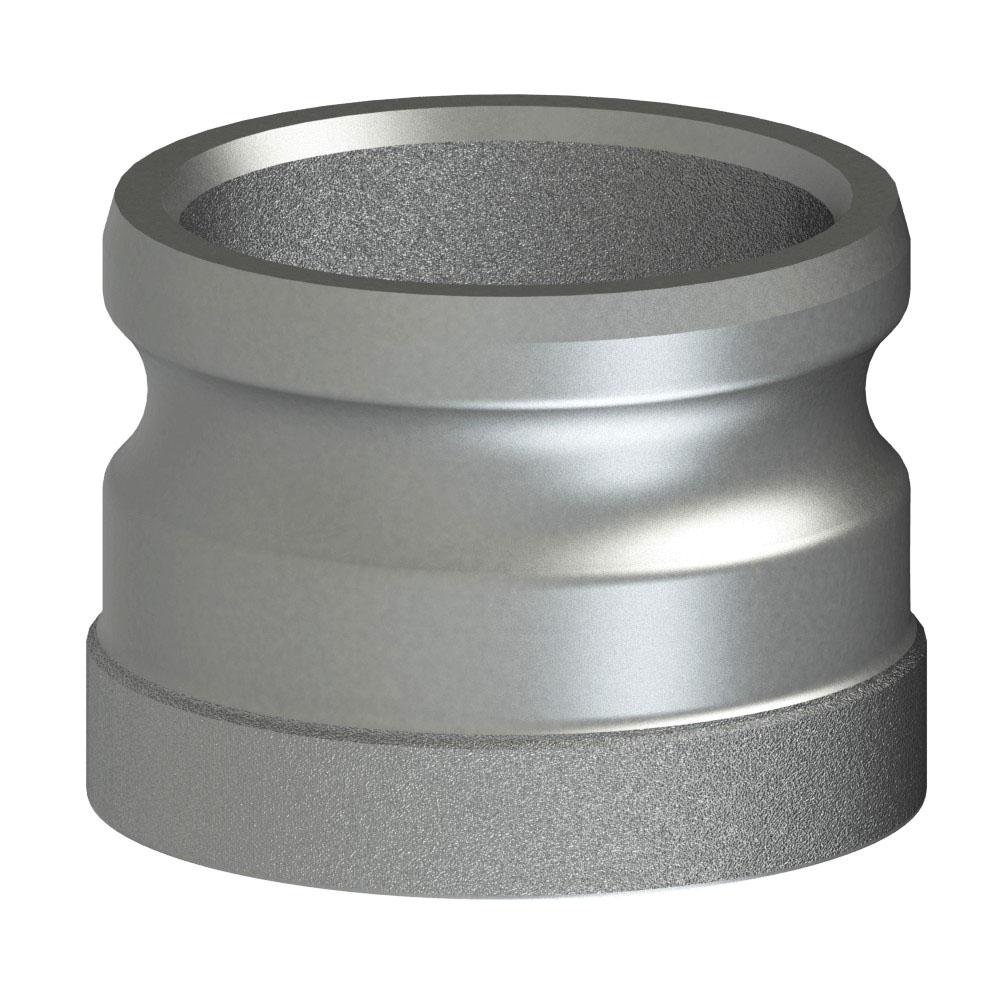

76601501 (15AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 1-1/2" Adapter x Socket Weld for Pipe | Hastelloy C
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Pipe | Hastelloy C
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $314.50 |
| 15–29 | $284.38 |
| 30+ | $250.93 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
PRODUCT DESCRIPTION
PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part AWS - Adapter x Socket Weld for Pipe - Hastelloy C®
| Features & Applications: | |||
|---|---|---|---|
|
|||
| This Fitting is also Available in the Following Materials: | |||
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | Socket Depth (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Socket Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 10AWS | 76601001 | 1" | 0.30" | 1.45" | 0.88" | 1.44" | 1.36" | 250 PSI |
| 15AWS | 76601501 | 1-1/2" | 0.40" | 2.25" | 1.35" | 2.13" | 1.95" | 250 PSI |
| 20AWS | 76602004 | 2" | 0.40" | 2.74" | 1.81" | 2.50" | 2.44" | 250 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
