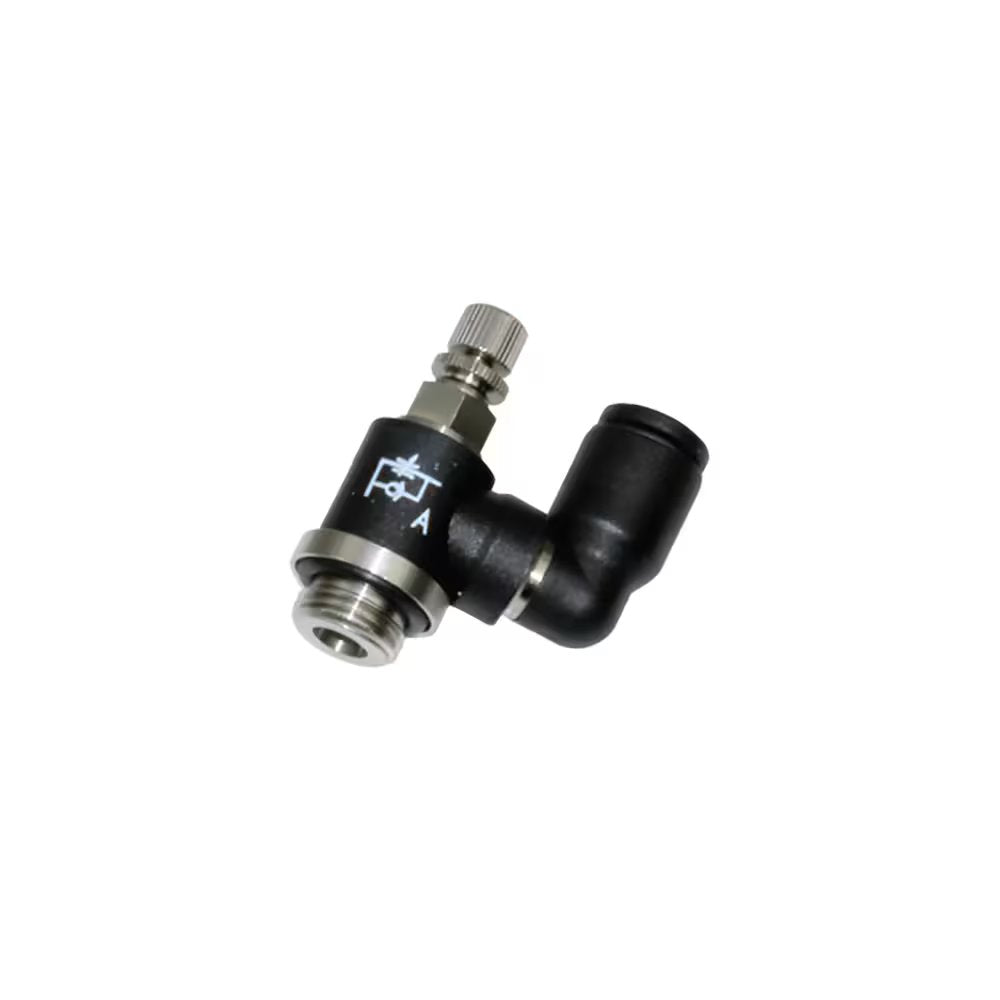

7645 04 11 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 8mm Hex | Multi-Directional | Nylon | Pack of 10

7645 04 11 by Parker | Legris Swivel Outlet Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 8mm Hex | Multi-Directional | Nylon | Pack of 10

Sale price$298.34

by Parker Hannifin
Flow Control – Swivel Outlet:7640/7645 - miniature swivel outlet flow control tube to NPT, UNF, or BSPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $280.44
15–29 $253.59
30+ $223.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7640 Series
Shape:

Multi-Directional

Ends Configuration:
  • 5/32in Push-to-Connect
  • 1/8in Male NPT
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD UNF / NPT (C) F G H (min) H (max) H1 J L L1 Oz
7640 04 20 5/32" 10-32 6 mm .33" .96" 1.08" .55" .37" .73" .26" .39 Oz
7645 04 11 5/32" 1/8" 8 mm .33" 1.08" 1.20" .55" .45" .73" .33" .39 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
