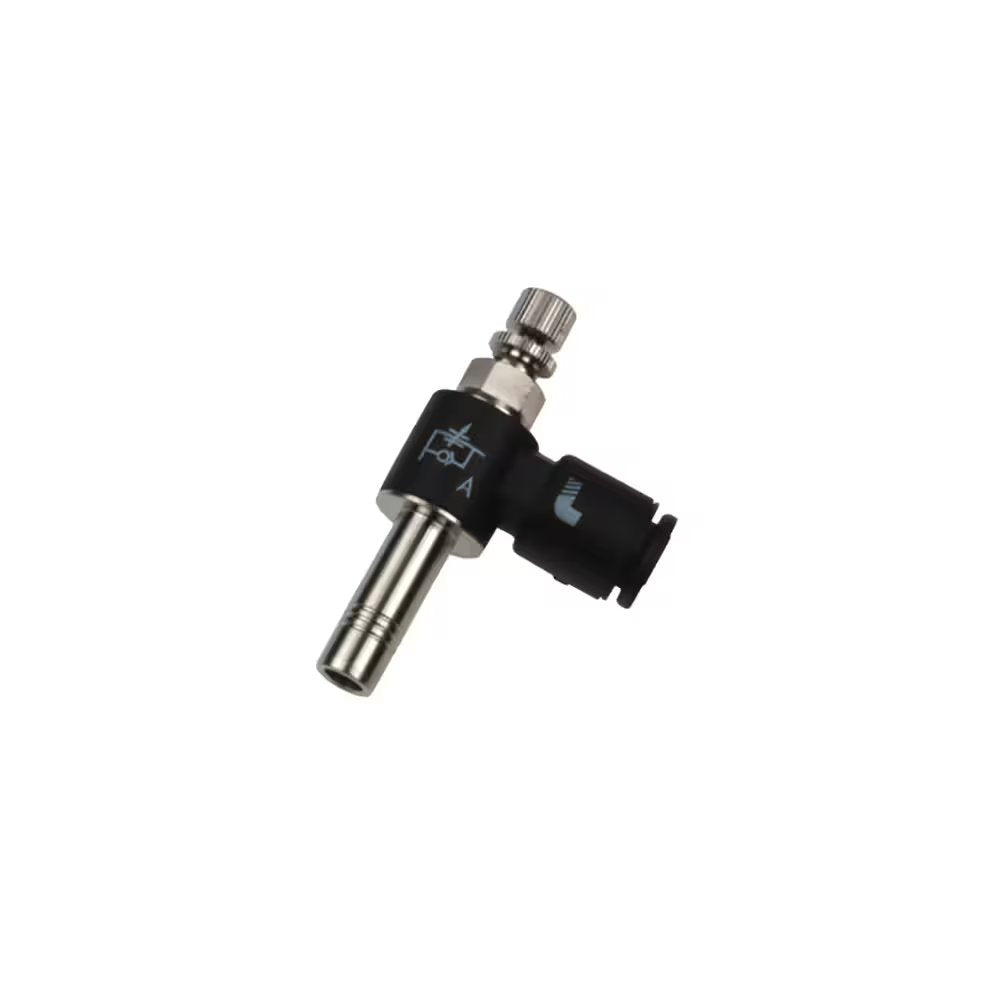

7630 56 00 by Parker | Legris Plug-In Miniature Flow Control - Meter Out | 1/4" Push-to-Connect x 1/4" Tube Stem | 6 mm Hex | 90° Elbow | Nylon | Pack of 10

7630 56 00 by Parker | Legris Plug-In Miniature Flow Control - Meter Out | 1/4" Push-to-Connect x 1/4" Tube Stem | 6 mm Hex | 90° Elbow | Nylon | Pack of 10

Sale price$366.35

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated tailpiece
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD F H (min) H (max) H1 H2 L Oz
7630 53 00 1/8" 6 mm .94" 1.04" .12" .59" .67" .25 Oz
7630 56 00 1/4" 7 mm 1.08" 1.18" .12" .73" .73" .39 Oz

Additional Product Data:

Series:
  • 7630 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Tube Stem

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
