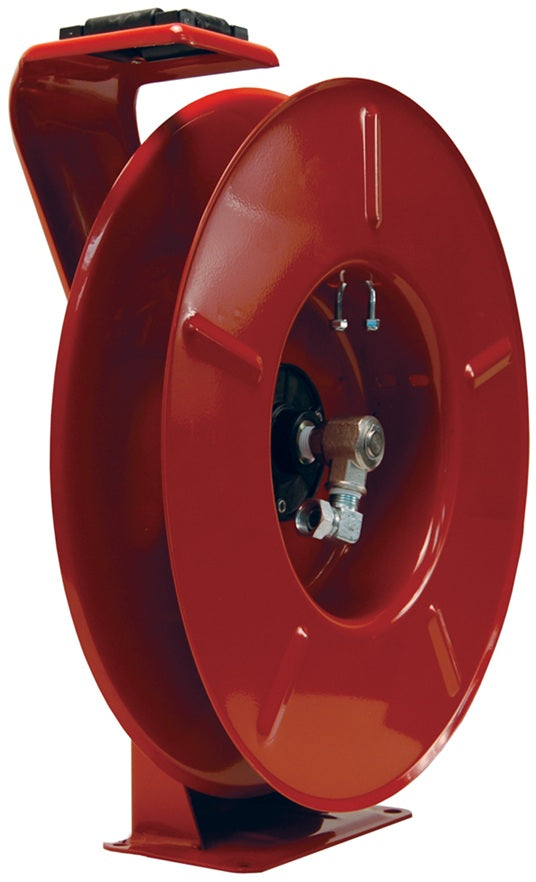

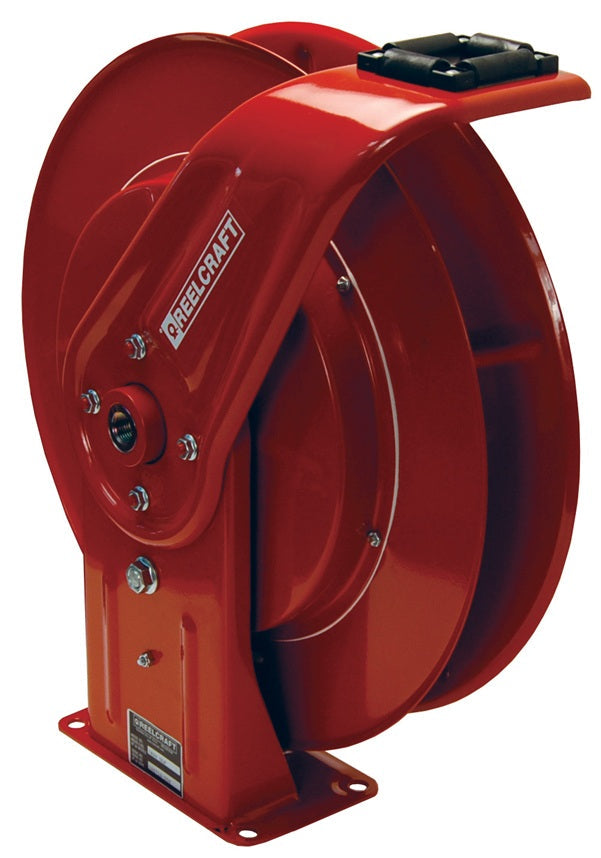

7600HP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - without Hose | High Pressure | 50ft of 1/4", or 50ft of 3/8" Hose Capacity | Steel
7600HP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - without Hose | High Pressure | 50ft of 1/4", or 50ft of 3/8" Hose Capacity | Steel

7600HP by Dixon Valve | Reelcraft® 7000 Series | Spring Driven Hose Reel - without Hose | High Pressure | 50ft of 1/4", or 50ft of 3/8" Hose Capacity | Steel

Sale price$1,216.11
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • All steel construction.
Features:
  • LP Low Pressure Reels:
    • - maximum temperature1 50°F (66°C)
    • - reel inlet 1/2" NPTF
    • - PVC hose is standard
  • MP Medium Pressure Reels:
    • - maximum temperature2 10°F (99°C)
    • - reel inlet 1/2" NPTF
    • - SAE 100 R1T 1-wire braid hose available
  • HP High Pressure Reels:
    • - maximum temperature2 10°F (99°C)
    • - reel inlet 1/4" NPTF
    • - SAE 100 R2T 2-wire braid hose available
Reel with Hose
Part Number Hose I.D. Hose Length Service Working
Pressure
PSI
@70°F
7670LP 3/8" 70ft Air / Water 300 PSI
7850LP 1/2" 50ft Air / Water 300 PSI
Reel without Hose
Part Number Hose Capacity Service Working
Pressure
PSI
@70°F
800LP 70ft of 3/8", or 50ft of 1/2" Air / Water 500 PSI
7800MP 50ft of 3/8", or 50ft of 1/2" Oil 3000 PSI
7600HP 50ft of 1/4", or 50ft of 3/8" Grease 5000 PSI

Additional Product Data:

Brand:
  • Reelcraft
Series:
  • 7000 Series

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
