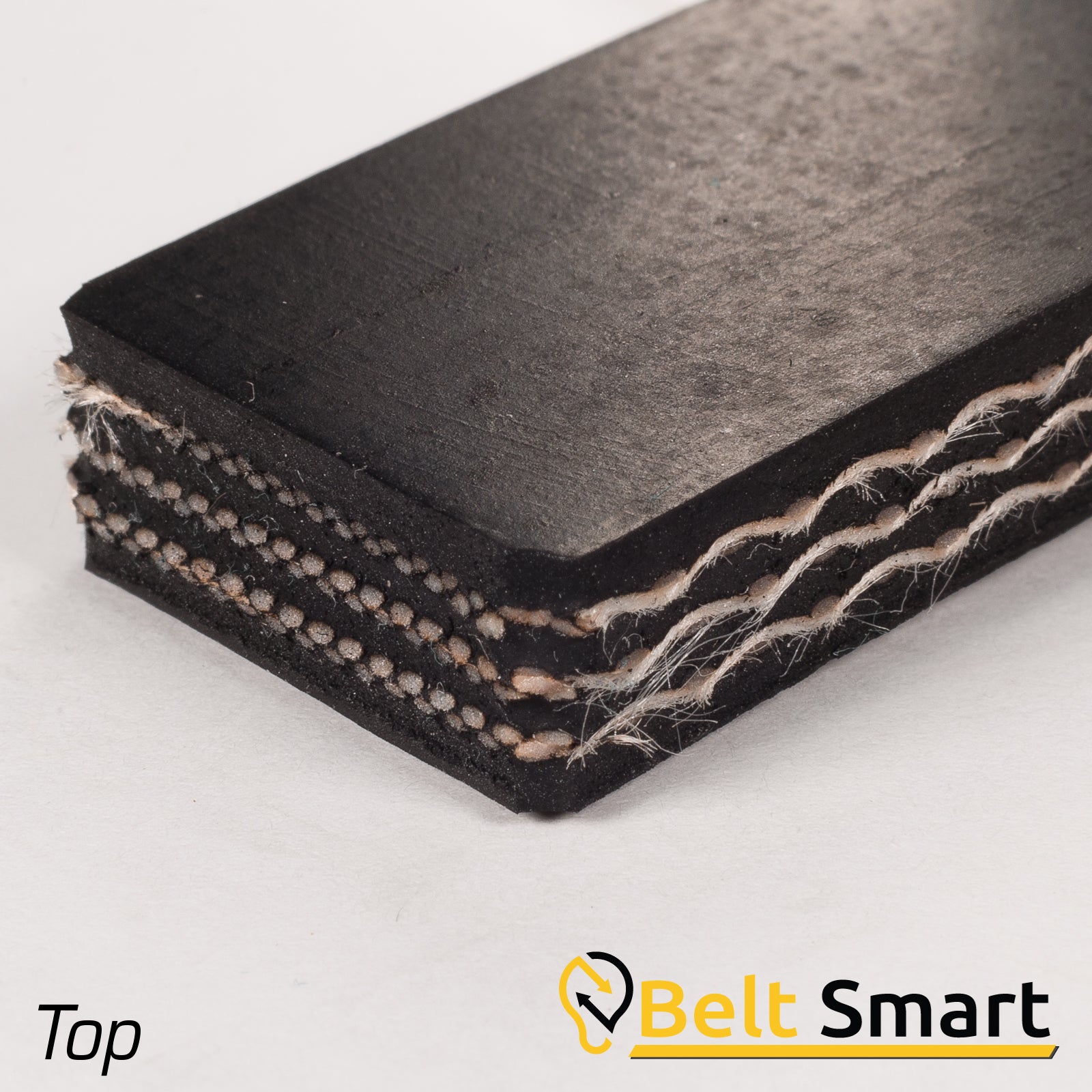

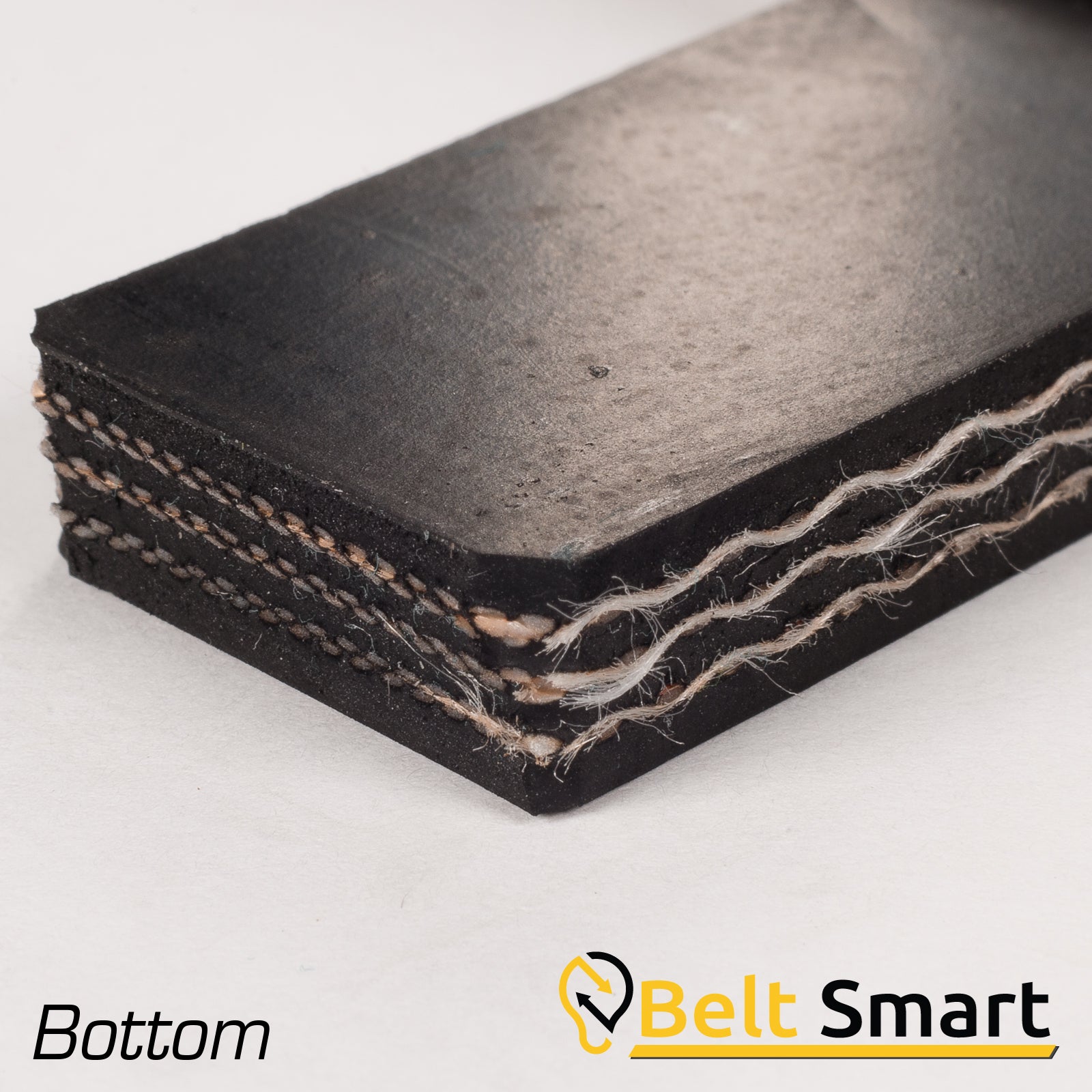

BS076 - #76 Beltservice 3 Ply 330 Black Belt 1/16" x 1/16" FR-SC-VOR Conveyor Belt
BS076 - #76 Beltservice 3 Ply 330 Black Belt 1/16" x 1/16" FR-SC-VOR Conveyor Belt
Beltservice

BS076 - #76 Beltservice 3 Ply 330 Black Belt 1/16" x 1/16" FR-SC-VOR Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • Heavy Duty Belting
  • Oily Grains
  • Grain Conveyors / Elevators
Features:
  • Specially compounded for the oily effects of grain, this belt is also static conductive.
  • Carries the FR designation for fire resistance.
  • Designed for grain conveyors and elevators where static charges must be held to a minimum.
  • VOR compound is resistant to mineral and vegetable oil sprays.
Specifications:
  • Fire Resistant
2 Ply 220
1/8" x 1/16"
FR-SC-MOR
Pt No.: 74a		 2 Ply 220
1/16" x 1/16"
FR-SC-VOR
Pt No.: 74b		 3 Ply 330
1/16" x 1/16"
FR-SC-VOR
Pt No.: 76		 3 Ply 600
1/16" x 1/16"
FR-SC-VOR
Pt No.: 80c
Thickness 5/16" N/A 9/32" N/A
Covers 1/8" x 1/16" N/A 3/64" x 3/64" N/A
Carcass Synthetic N/A Synthetic N/A
Working Tension
per Inch Width		 220 lbs. N/A 330 lbs. N/A
Approx. Weight
Lbs. Per Inch Width		 .176 lbs. N/A .126 lbs. N/A
Min. Pulley Diameter
Head		 12" N/A 16" N/A
Min. Pulley Diameter
Tail		 10" N/A 10" N/A
Temperature Range -25 deg. F / 225 deg. F N/A -25 deg. F / 225 deg. F N/A
Compound SBR/Nitrile N/A SBR/Nitrile N/A
Lacing/Fastener
Recommendations		 Flexco Plate #140
Flexco Hinged #375 or #550
Flexco Rivet R5		 N/A
N/A
N/A		 Flexco Plate #140
Flexco Hinged #375 or #550
Flexco Rivet R5		 N/A
N/A
N/A
FR = Fire Resistant
SC = Static Conductive
