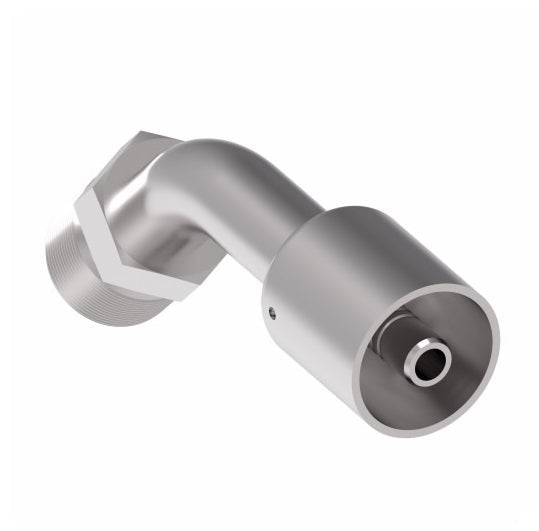

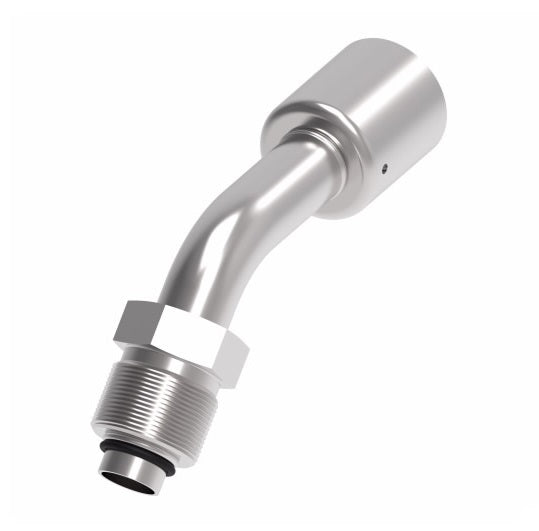

75712E-Z30 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -10 Male Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Swivel Tube - 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.54 |
| 40–79 | $25.81 |
| 80+ | $22.77 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | Length A |
Run B |
Hose Cut-Off Factor |
Hex F |
| 75706E-Z26 | 5/16" | 3/8" | 5/8-18 | 3.09" | 0.88" | 1.88" | 5/8" |
| 75708E-Z28 | 13/32" | 1/2" | 3/4-18 | 3.59" | 1.03" | 2.38" | 3/4" |
| 75710E-Z30 | 1/2" | 5/8" | 7/8-18 | 3.71" | 1.06" | 2.50" | 7/8" |
| 75712E-Z30 | 5/8" | 5/8" | 7/8-18 | 4.19" | 1.19" | 2.88" | 7/8" |
| 75712E-Z32 | 5/8" | 3/4" | 1-1/16-16 | 4.19" | 1.19" | 2.88" | 1-1/16" |
Note: Drawings may differ from actual parts.
