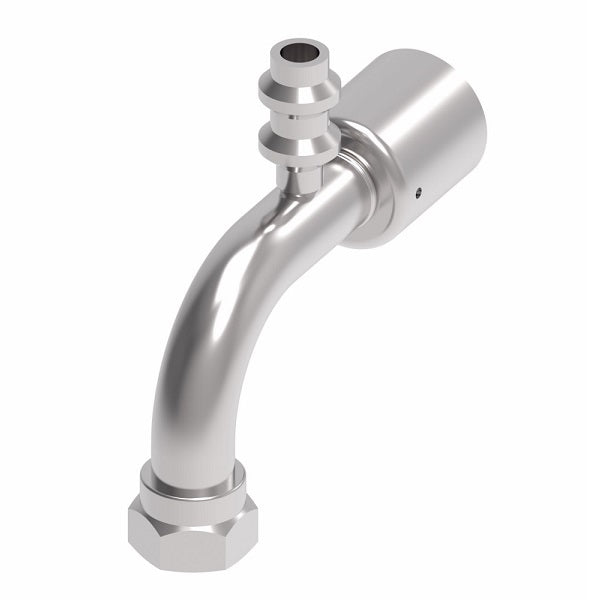

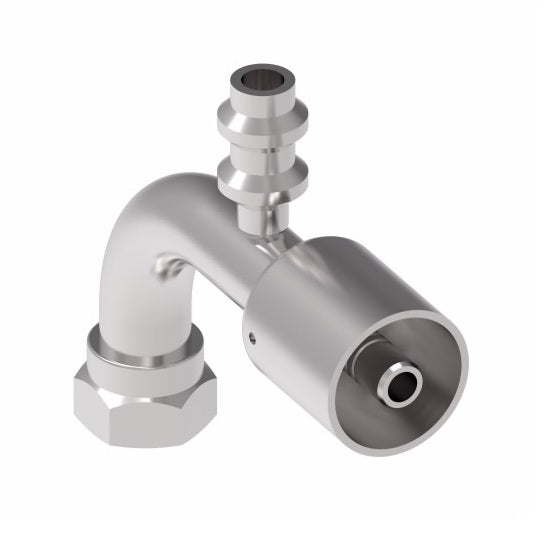

75712E-Z01 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring Swivel x -10 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube with R134a Service Port - 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $39.05 |
| 40–79 | $35.31 |
| 80+ | $31.16 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Port | A | Thread Size | Run R |
Drop B |
Hose Cut-Off Factor |
Hex F |
Length L |
| 75706E-Z97 | 5/16" | 3/8" | High Side Port | 2.52" | 5/8-18 | 2.12" | 1.12" | 2.75" | 3/4" | 1.50" |
| 75708E-Z99 | 13/32" | 1/2" | High Side Port | 4.15" | 3/4-16 | 2.75" | 1.68" | 2.88" | 7/8" | 1.50" |
| 75710E-Z01 | 1/2" | 5/8" | Low Side Port | 3.78" | 7/8-14 | 2.38" | 1.50" | 3.00" | 1-1/16" | 1.50" |
| 75712E-Z01 | 5/8" | 5/8" | Low Side Port | 4.61" | 7/8-14 | 3.11" | 1.95" | 3.00" | 1-1/16" | 1.50" |
Note: Drawings may differ from actual parts.
