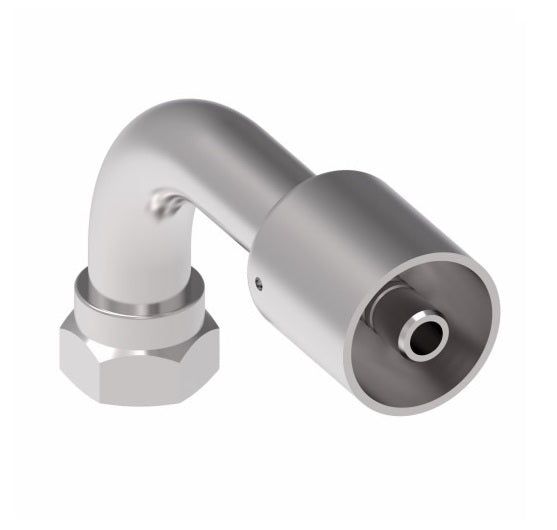

75710E-Z91 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow Crimp Fitting | -10 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube - 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.93 |
| 40–79 | $23.44 |
| 80+ | $20.69 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | Length A |
Run R |
Drop B |
Hose Cut-Off Factor |
Hex F |
| 75706E-Z87 | 5/16" | 3/8" | 5/8-18 | 4.07" | 2.67" | 1.12" | 2.75" | 3/4" |
| 75706E-Z89 | 5/16" | 1/2" | 3/4-16 | 4.14" | 2.74" | 1.31" | 2.88" | 7/8" |
| 75708E-Z89 | 13/32" | 1/2" | 3/4-16 | 4.14" | 2.74" | 1.50" | 2.88" | 7/8" |
| 75710E-Z91 | 1/2" | 5/8" | 7/8-14 | 4.25" | 2.85" | 1.75" | 3.00" | 1-1/16" |
| 75712E-Z91 | 5/8" | 5/8" | 7/8-14 | 4.35" | 2.85" | 1.75" | 3.00" | 1-1/16" |
| 75712E-Z93 | 5/8" | 3/4" | 1-1/16-14 | 4.45" | 2.95" | 1.75" | 3.13" | 1-1/4" |
Note: Drawings may differ from actual parts.
