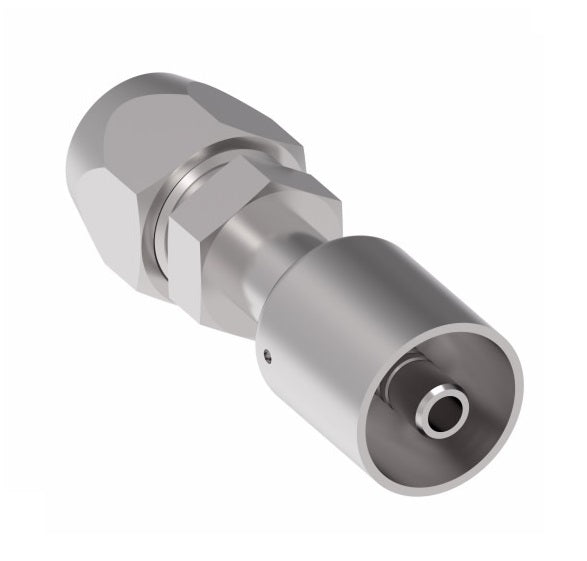

75708E-760 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -10 Compression x -08 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Rigid Compression (with Nut and Sleeve) - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.46 |
| 40–79 | $46.53 |
| 80+ | $41.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | Length A |
Hose Cut-Off Factor |
Hex F |
Hex G |
| 75706E-Z06 | 5/16" | 3/8" | 5/8-18 | 2.59" | 1.38" | 5/8" | 3/4" |
| 75706E-758 | 5/16" | 1/2" | 3/4-16 | 2.71" | 1.50" | 3/4" | 7/8" |
| 75708E-756 | 13/32" | 3/8" | 5/8-18 | 2.65" | 1.38" | 5/8" | 3/4" |
| 75708E-758 | 13/32" | 1/2" | 3/4-16 | 2.78" | 1.50" | 3/4" | 7/8" |
| 75708E-760 | 13/32" | 5/8" | 7/8-14 | 2.90" | 1.63" | 7/8" | 1-1/16" |
| 75710E-758 | 1/2" | 1/2" | 3/4-16 | 2.84" | 1.63" | 3/4" | 7/8" |
| 75710E-760 | 1/2" | 5/8" | 7/8-14 | 2.90" | 1.63" | 7/8" | 1-1/16" |
| 75712E-760 | 5/8" | 5/8" | 7/8-14 | 3.13" | 1.75" | 7/8" | 1-1/16" |
| 75712E-762 | 5/8" | 3/4" | 1-1/16-14 | 3.25" | 1.88" | 1-1/16" | 1-1/4" |
Note: Drawings may differ from actual parts.
