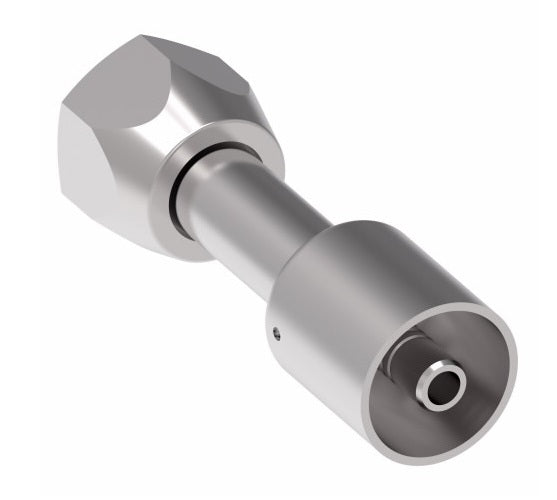

75706E-408 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Crimp Fitting | -08 Female SAE 45° Flare Swivel x -05 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female SAE 45° Flare Swivel - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.36 |
| 40–79 | $18.41 |
| 80+ | $16.25 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | Length A |
Run R |
Hose Cut-Off Factor |
Hex F |
| 75706E-406 | 5/16" | 3/8" | 5/8-18 | 2.78" | 1.38" | 1.50" | 3/4" |
| 75706E-408 | 5/16" | 1/2" | 3/4-16 | 2.90" | 1.50" | 1.75" | 7/8" |
| 75708E-408 | 13/32" | 1/2" | 3/4-16 | 2.84" | 1.44" | 1.56" | 7/8" |
| 75710E-410 | 1/2" | 5/8" | 7/8-14 | 3.09" | 1.69" | 1.81" | 1-1/16" |
| 75712E-410 | 5/8" | 5/8" | 7/8-14 | 3.25" | 1.75" | 2.00" | 1-1/16" |
Note: Drawings may differ from actual parts.
