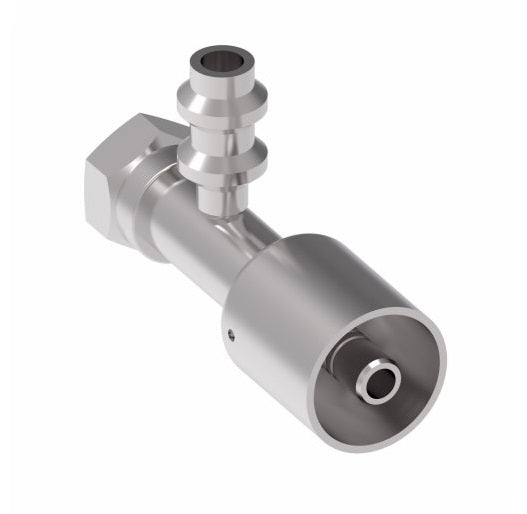

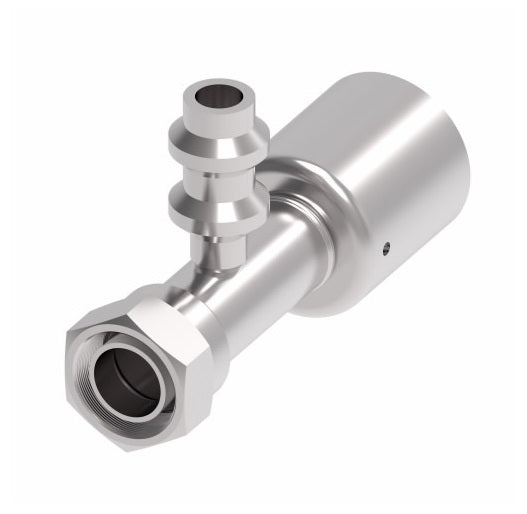

75706E-Z57 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting | -06 Female Bumped Tube O-Ring x -05 Hose Barb | Steel
Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel with R134a High Service Port Crimp Fitting - Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.90 |
| 40–79 | $35.17 |
| 80+ | $31.04 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Pressure: | |||
|
|||
| Material: | |||
|
|||
| Compatible Hose: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose I.D. | Tube Size | Thread Size | Port | Length A |
Run R |
Hose Cut-Off Factor |
Hex F |
| 75706E-Z57 | 5/16" | 3/8" | 5/8-18 | High Side Port | 4.28" | 1.88" | 3.00" | 3/4" |
| 75708E-Z59 | 13/32" | 1/2" | 3/4-16 | High Side Port | 4.28" | 1.88" | 3.00" | 7/8" |
| 75710E-Z61 | 1/2" | 5/8" | 7/8-14 | Low Side Port | 4.52" | 2.12" | 3.25" | 1-1/16" |
| 75712E-Z61 | 5/8" | 5/8" | 7/8-14 | Low Side Port | 4.62" | 3.05" | 3.25" | 1-1/16" |
Note: Drawings may differ from actual parts.
