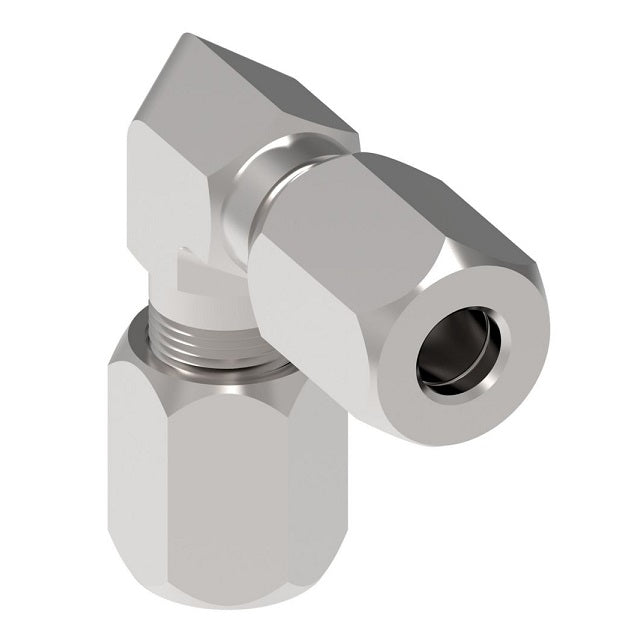

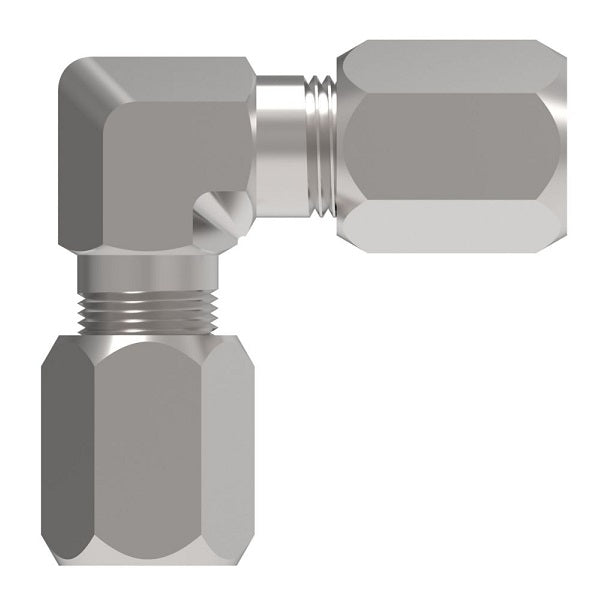

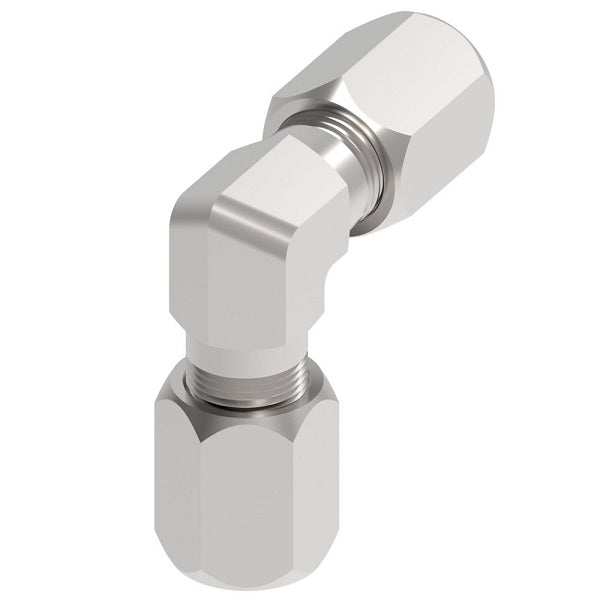

7505X5 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector | 5/16" Tube OD x 5/16" Tube OD | Steel
7505X5 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector | 5/16" Tube OD x 5/16" Tube OD | Steel
7505X5 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector | 5/16" Tube OD x 5/16" Tube OD | Steel

7505X5 Ermeto by Danfoss | 7000 Series | Tube Union 90° Elbow Connector | 5/16" Tube OD x 5/16" Tube OD | Steel

Sale price$20.89
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080201
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. D M Across
Flats
7505X4 B7505X4 1/4" 0.203" 0.89" 7/16"
7505X5 B7505X5 5/16" 0.234" 0.95" 1/2"
7505X6 B7505X6 3/8" 0.281" 1.05" 9/16"
7505X8 B7505X8 1/2" 0.422" 1.25" 3/4"
7505X10 B7505X10 5/8" 0.500" 1.42" 7/8"
7505X12 B7505X12 3/4" 0.656" 1.58" 1-1/16"
7505X14 B7505X14 7/8" 0.718" 1.66" 1-5/16"
7505X16 B7505X16 1" 0.875" 1.73" 1-5/16"
7505X20 B7505X20 1-1/4" 1.093" 1.89" 1-5/8"
7505X24 B7505X24 1-1/2" 1.346" 2.02" 1-7/8"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 5/16in Tube Compression
  • 5/16in Tube Compression
  • Some Ends Match
Material(s):
  • Steel
