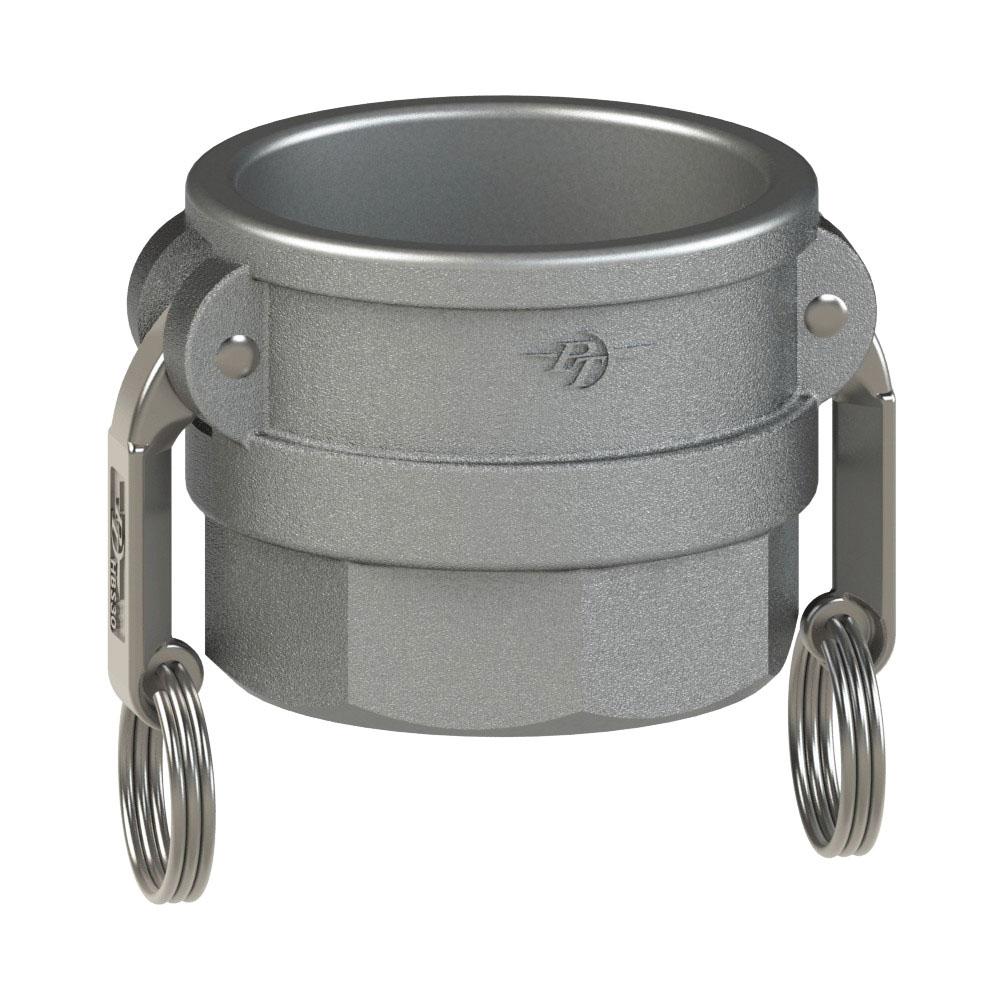

74624001 (40DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 4" Coupler x Socket Weld for Pipe | Carbon Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type DWS | Coupler x Socket Weld for Pipe | Carbon Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $317.64 |
| 15–29 | $287.22 |
| 30+ | $253.43 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Socket Depth (E) |
Socket Diameter (F) |
Max. Allowable Working Press. (PSI)* |
| 40DWS | 74624001 | 4" | 10.66" | 6.56" | 3.60" | 3.90" | .70" | 4.58" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
