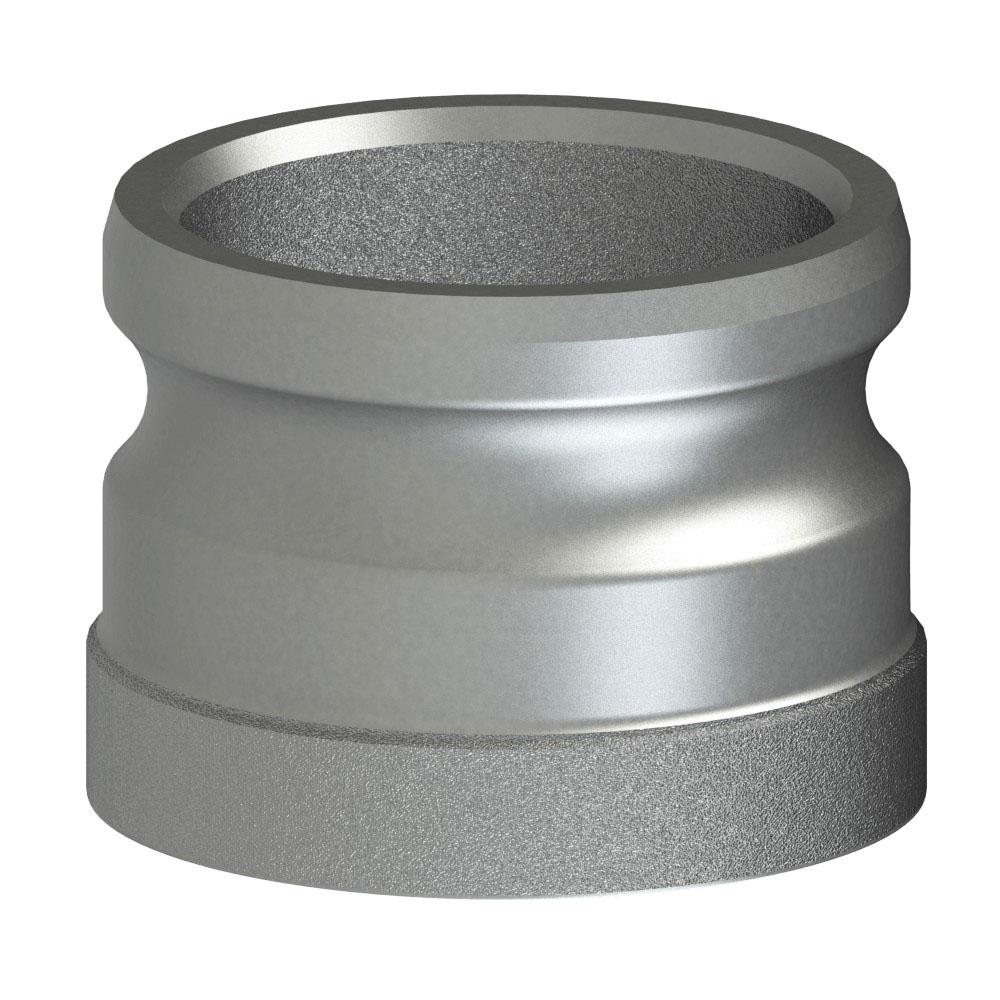

74604099 (40AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 4" Adapter x Socket Weld for Pipe | Carbon Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Pipe | Carbon Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $109.17 |
| 20–59 | $98.72 |
| 60+ | $87.11 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | Socket Depth (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Socket Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 40AWS | 74604099 | 4" | 0.60" | 5.01" | 3.00" | 2.97" | 4.58" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
