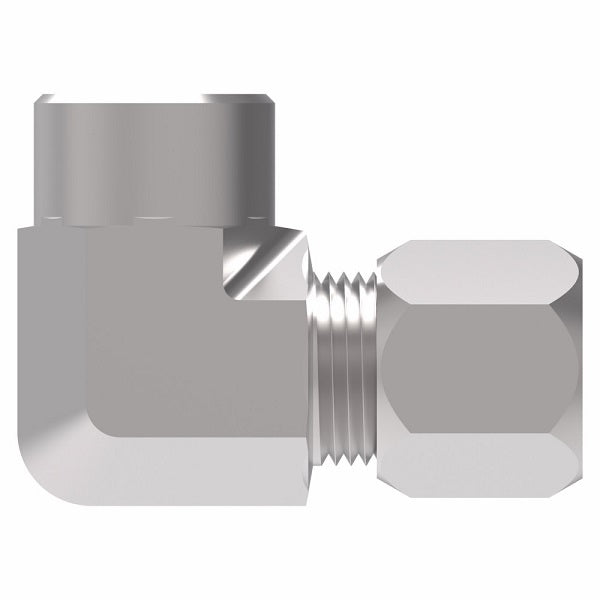

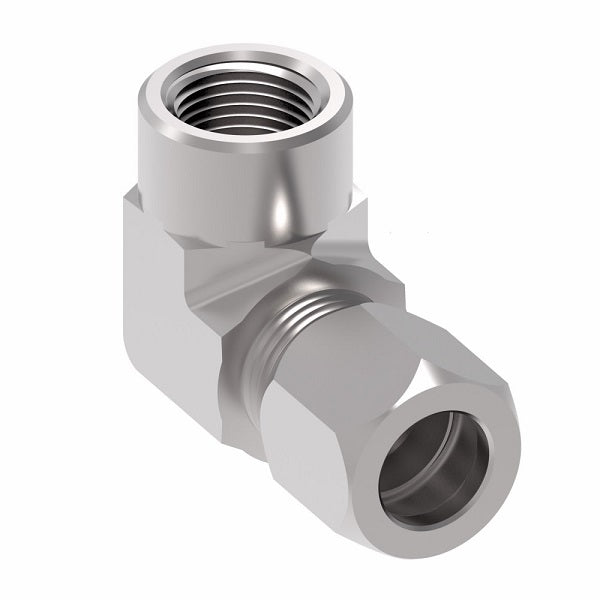

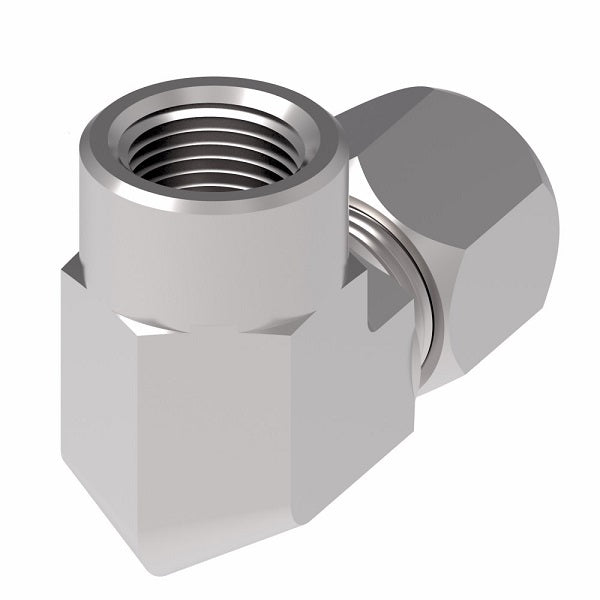

7455X4 Ermeto by Danfoss | 7000 Series | Female Pipe/Tube 90° Elbow Connector | 1/8" Female NPTF x 1/4" Tube OD | Steel
7455X4 Ermeto by Danfoss | 7000 Series | Female Pipe/Tube 90° Elbow Connector | 1/8" Female NPTF x 1/4" Tube OD | Steel
7455X4 Ermeto by Danfoss | 7000 Series | Female Pipe/Tube 90° Elbow Connector | 1/8" Female NPTF x 1/4" Tube OD | Steel

7455X4 Ermeto by Danfoss | 7000 Series | Female Pipe/Tube 90° Elbow Connector | 1/8" Female NPTF x 1/4" Tube OD | Steel

Sale price$23.76
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080203
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Female Pipe Thread D M N Across
Flats
7455X4 B7455x4 1/4" 1/8" 0.203" 0.89" 0.66" 9/16"
7455X4X4 B7455x4x4 1/4" 1/4" 0.203" 1.03" 0.88" 3/4"
7455X6 B7455x6 3/8" 1/4" 0.281" 1.05" 0.88" 3/4"
7455X6X6 B7405x6x6 3/8" 3/8" 0.281" 1.14" 1.02" 7/8"
7455X8 B7455x8 1/2" 3/8" 0.422" 1.23" 1.02" 7/8"
7455X8X8 B7455x8x8 1/2" 1/2" 0.422" 1.35" 1.23" 1-1/16"
7455X10 B7455x10 5/8" 1/2" 0.500" 1.42" 1.23" 1-1/16"
7455X12 B7455x12 3/4" 3/4" 0.656" 1.58" 1.36" 1-5/16"
7455X14 B7455x14 7/8" 3/4" 0.718" 1.66" 1.42" 1-5/16"
7455X16 B7455x16 1" 1" 0.875" 1.73" 1.62" 1-5/8"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/8in Female NPTF
  • 1/4in Tube Compression
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
