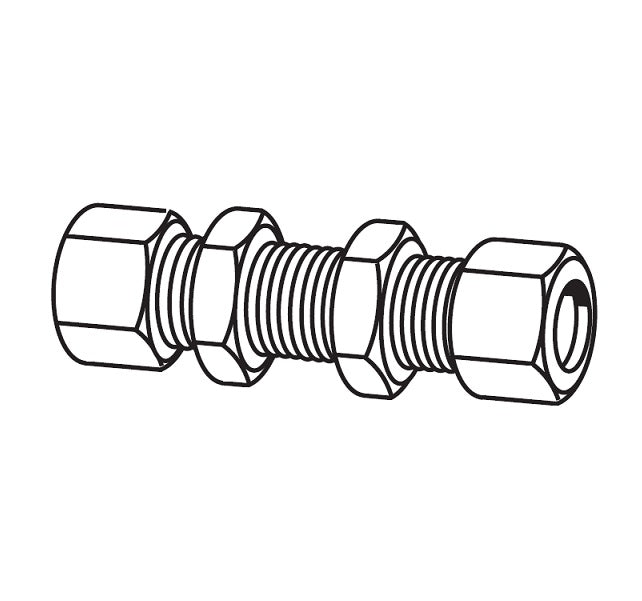

741X4 by Danfoss | SelfAlign Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Brass

741X4 by Danfoss | SelfAlign Adapter | Bulkhead Union | 1/4" Tube OD x 1/4" Tube OD | Brass

Sale price$15.08

Aeroquip® by Danfoss
SelfAlign Adapter - Bulkhead Union
SelfAlign End x SelfAlign End
Straight
Buy More, Save More!
Quantity Price Each
10–39 $14.18
40–79 $12.82
80+ $11.31
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Tube Compression
  • Some Ends Match
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Hex
C		 D I L Max. P
741X4 1/4" 9/16" 0.188" 0.33" 1.58" 0.52"
