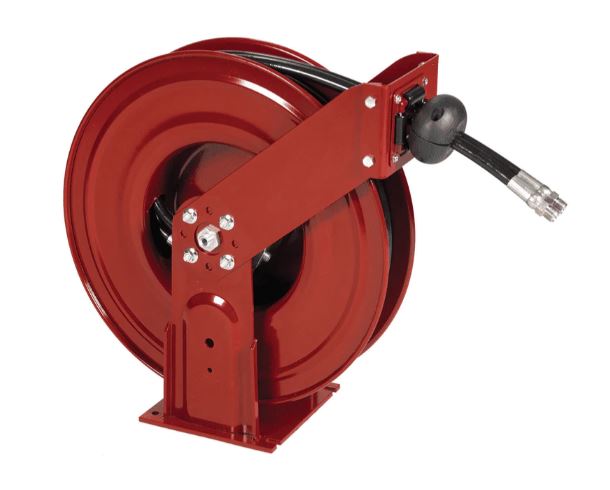

7370 by Alemite | Narrow Double Post Reels | Grease | Bare Reel | Union Inlet: 1/2" Male NPTF | Reel Outlet: 3/8" Female NPSM Swivel | Max Pressure: 6500 PSI

7370 by Alemite | Narrow Double Post Reels | Grease | Bare Reel | Union Inlet: 1/2" Male NPTF | Reel Outlet: 3/8" Female NPSM Swivel | Max Pressure: 6500 PSI

Sale price$1,092.56
Alemite Narrow Double Post Reels - Grease
Buy More, Save More!
Quantity Price Each
4–7 $1,027.01
8–14 $983.30
15+ $874.05
Discounts applied in cart/checkout.
Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Grease, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8081-J 7370 4,000 PSI 3/8" x 50' (317870-50) 3/8" NPTF(m) 1/4" NPTF(f) 72 Lb.
7370 7370 6,500 PSI NA 3/8" NPTF(m) NA 58.4 Lb.

Product Data:

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
