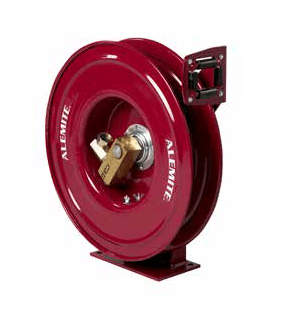

7337-C Alemite Severe Duty Reels - Fuel - Bare Reel - Max Pressure, 300 PSI

7337-C by Alemite | Severe Duty Reels | Diesel Fuel Oil | Bare Reel | Reel Inlet: 3/4" Female NPTF | Reel Outlet: 3/4" Female NPTF Swivel | Max Pressure: 300 PSI

Sale price$840.52
Alemite Severe Duty Reels - Fuel
Buy More, Save More!
Quantity Price Each
5–14 $790.09
15–29 $714.44
30+ $672.42
Discounts applied in cart/checkout.
Applications,
  • Tough jobs require tough equipment. Alemite Severe Duty Reels are designed to deliver maximum strength and durability in harsh working conditions. The thicker, fully welded base plate provides solid stability for mobile applications, and weather resistant gaskets and O-rings protect internal components from corrosion.
Features,
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings and weather resistant sealing components prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors.Thicker, fully welded base plate ensures off road stability.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Oil, grease, air, water, fuel
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Connecting Hose Connecting Hose Inlet Delivery Hose Outlet Weight
8078-K 7337-C 300 PSI 3/4" x 30' (317868-30) 317868-2 3/4" NPTF(m) 3/4" MPTF(m) 71 Lb.
7337-C 7337-C 300 PSI NA NA NA NA 52.8 Lb.

Product Data:

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
