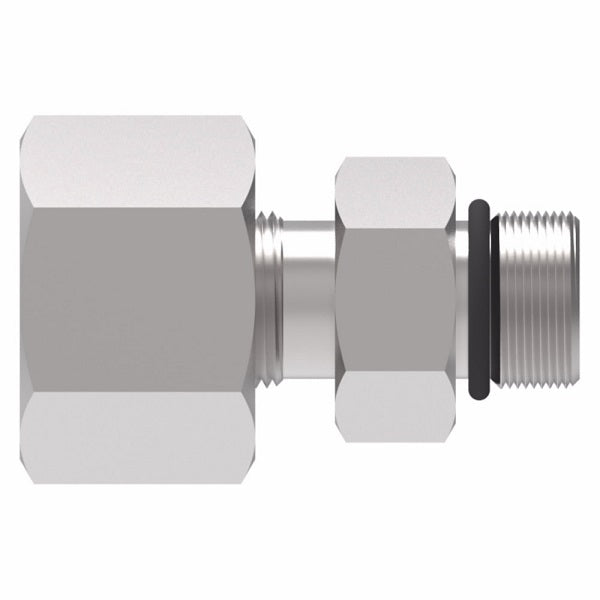

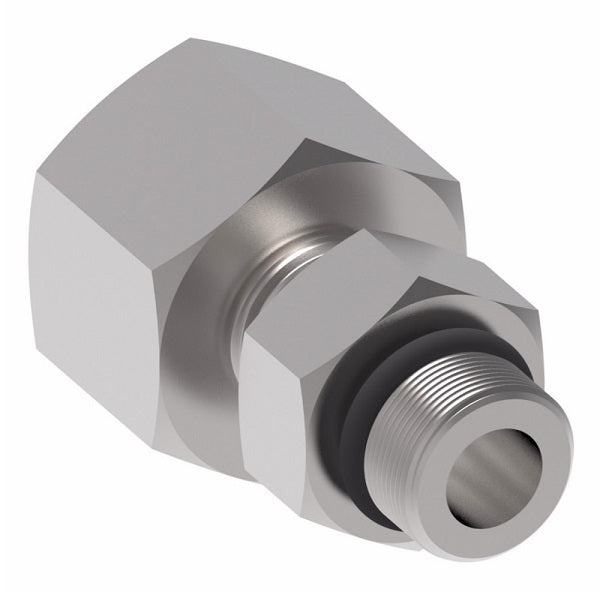

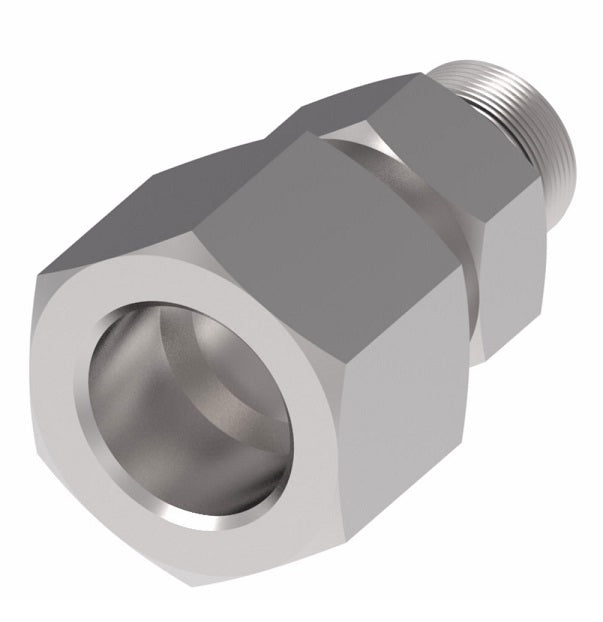

7315X8X12 Ermeto by Danfoss | 7000 Series | O-Ring Connector | 3/4" Male O-Ring Boss x 1/2" Tube OD | Steel
7315X8X12 Ermeto by Danfoss | 7000 Series | O-Ring Connector | 3/4" Male O-Ring Boss x 1/2" Tube OD | Steel
7315X8X12 Ermeto by Danfoss | 7000 Series | O-Ring Connector | 3/4" Male O-Ring Boss x 1/2" Tube OD | Steel

7315X8X12 Ermeto by Danfoss | 7000 Series | O-Ring Connector | 3/4" Male O-Ring Boss x 1/2" Tube OD | Steel

Sale price$27.06
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE No. 080120
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Port size Hex C D L D1
opt.
7315X3 B7315X3 3/16" 3/16" 1/2" 0.125" 1.04" -
7315X4 B7315X4 1/4" 1/4" 9/16" 0.203" 1.13" -
7315X4X5 B7315X4X5 1/4" 5/16" 5/8" 0.203" 1.13" -
7315X5 B7315X5 5/16" 5/16" 5/8" 0.234" 1.13" -
7315X6 B7315X6 3/8" 3/8" 11/16" 0.281" 1.21" -
7315X6X8 B7315X6X8 3/8" 1/2" 7/8" 0.281" 1.29" 0.422"
7315X8 B7315X8 1/2" 1/2" 7/8" 0.422" 1.38" -
7315X8X10 B7315X8X10 1/2" 5/8" 1" 0.422" 1.51" 0.500"
7315X8X12 B7315X8X12 1/2" 3/4" 1-1/4" 0.422" 1.67" 0.656"
7315X10 B7315X10 5/8" 5/8" 1" 0.500" 1.57" -
7315X12 B7315X12 3/4" 3/4" 1-1/4" 0.656" 1.79" -
- B7315X14 7/8" - - - - -
7315X16 B7315X16 1" 1" 1-1/2" 0.875" 1.82" -
7315X16X12 B7315X16X12 1" 3/4" 1-1/2" 0.875" 1.82" 0.656
7315X20 B7315X20 1-1/4" 1-1/4" 1-7/8" 1.093" 1.90" -

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 1/2in Tube Compression
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
