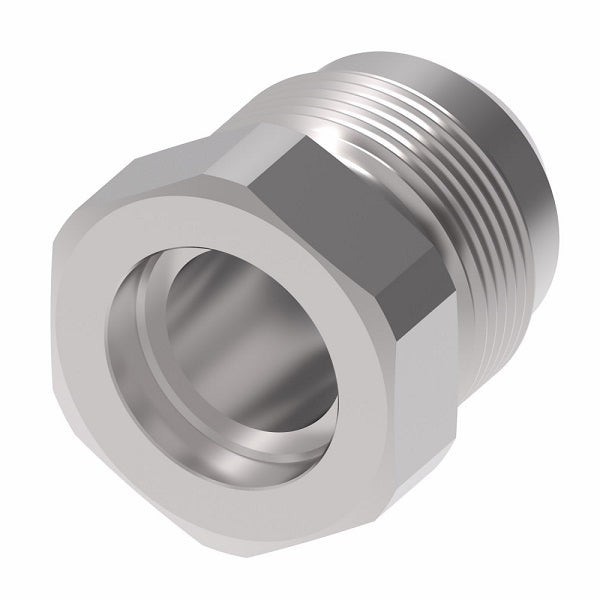

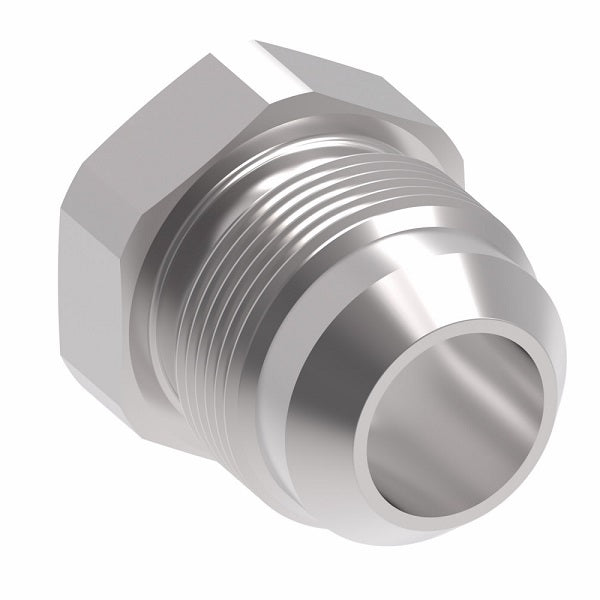

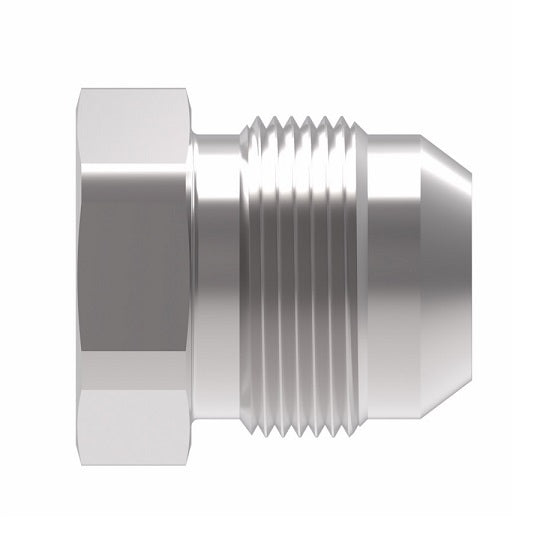

73014-20-16S Aeroquip by Danfoss | Braze Port/37° JIC Flare Adapter | -20 Braze Port x -20 Male 37° JIC Flare | Steel
Buy more, save moreDiscounts applied in cart/checkout.
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Tube O.D. | Thread T | A | B | C |
| 73014-4S | 0.25 | 7/16-20 | 0.74" | 0.25" | 0.16" |
| 73014-5S | 0.31 | 1/2-20 | 0.80" | 0.31" | 0.16" |
| 73014-6S | 0.38 | 9/16-18 | 0.81" | 0.38" | 0.16" |
| 73014-8-6S | 0.50 | 9/16-18 | 0.84" | 0.50" | 0.16" |
| 73014-8S | 0.50 | 3/4-16 | 0.94" | 0.50" | 0.16" |
| 73014-10S | 0.63 | 7/8-14 | 1.07" | 0.62" | 0.16" |
| 73014-12S | 0.75 | 1-1/16-12 | 1.24" | 0.75" | 0.25" |
| 73014-12-10S | 0.75 | 7/8-14 | 1.13" | 0.75" | 0.25" |
| 73014-16S | 1.00 | 1-5/16-12 | 1.29" | 1.00" | 0.25" |
| 73014-16-12S | 1.00 | 1-1/16-12 | 1.24" | 1.00" | 0.25" |
| 73014-16-20S | - | 1-5/8-12 | - | - | - |
| 73014-20S | 1.25 | 1-5/8-12 | 1.40" | 1.25" | 0.25" |
| 73014-20-16S | 1.25 | 1-5/16-12 | 1.29" | 1.25" | 0.25" |
| 73014-24S | 1.50 | 1-7/8-12 | 1.58" | 1.50" | 0.25" |
| 73014-24-20S | 1.50 | 1-5/8-12 | 1.46" | 1.50" | 0.25" |
| 73014-24-32S | 1.50 | 2-1/2-12 | 1.95" | 1.50" | 0.25" |
| 73014-32S | 2.00 | 2-1/2-12 | 1.96" | 2.00" | 0.25" |
| 73014-40S | 2.50 | 3-12 | 1.86" | 2.50" | 0.25" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
