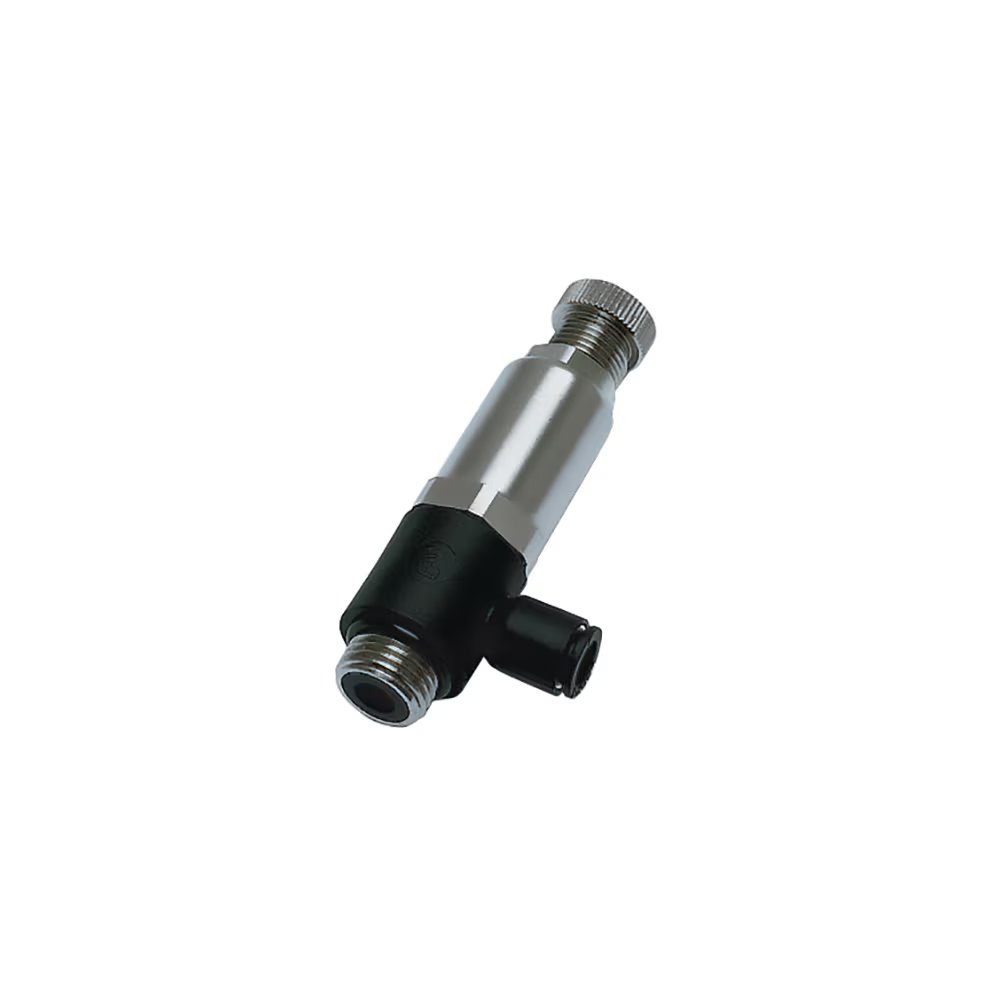

7300 10 17 by Parker | Legris Pressure Regulator | 10 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 92.5 mm Length | Banjo | Polymer

7300 10 17 by Parker | Legris Pressure Regulator | 10 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex | 92.5 mm Length | Banjo | Polymer

Sale price$110.16

by Parker Hannifin
Pressure Regulator Fittings:7300 Pressure Regulator, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $103.55
30–59 $93.64
60+ $82.62
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7300 Series
Shape:

Banjo

Ends Configuration:
  • 10mm Push-to-Connect
  • 3/8in Male BSPP
Technical Characteristics (7300):
  • Compatible Fluids: Compressed air
  • Working Pressure: Upstream pressure: 1 to 16 bar
    Downstream pressure: 1 to 8 bar
  • Working Temperature: -10°C to +70°C
Advantages:
  • Lockable adjustment possible of the setpoint
  • Output pressure adjustment options marked on the screw
  • Installation in a manifold allows optimum output pressures to be delivered specific parts of the circuit
  • Designed for applications where cylinder force needs to be controlled: marking, sleeving, crimping cylinders etc.
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Technical polymer
  • Screw: Nickel-plated brass
  • Seal: Nitrile
Part Number ØD C E F1 F2 G1 G2 H (max) L1 L2 Kg
7300 04 10 4 mm 1/8" 4.5 mm 17 mm 13 mm 14 mm 17 mm 65 mm 7 mm 18.5 mm .047 Kg
7300 06 10 6 mm 1/8" 4.5 mm 17 mm 13 mm 14 mm 17 mm 65 mm 7 mm 20 mm .047 Kg
7300 06 13 6 mm 1/4" 7.5 mm 17 mm 13 mm 14 mm 17 mm 74.5 mm 9.5 mm 22 mm .065 Kg
7300 08 10 8 mm 1/8" 4.5 mm 17 mm 13 mm 14 mm 17 mm 65 mm 7 mm 25 mm .048 Kg
7300 08 13 8 mm 1/4" 7.5 mm 17 mm 13 mm 14 mm 17 mm 74.5 mm 9.5 mm 27 mm .066 Kg
7300 08 17 8 mm 3/8" 8.5 mm 22 mm 17 mm 18.5 mm 22 mm 84 mm 11.5 mm 28.5 mm .122 Kg
7300 10 13 10 mm 1/4" 7.5 mm 17 mm 13 mm 14 mm 17 mm 74.5 mm 9.5 mm 29 mm .066 Kg
7300 10 17 10 mm 3/8" 8.5 mm 22 mm 17 mm 18.5 mm 22 mm 84 mm 11.5 mm 30.5 mm .122 Kg
