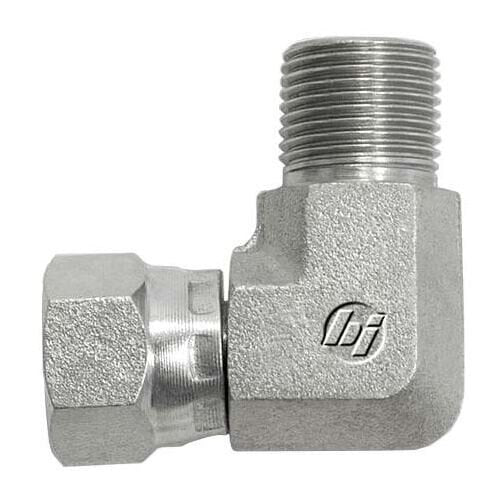

7222-10-08-FG by Brennan Inc. | -10 Female JIC Swivel x -08 Male BSPP | 90° Elbow | Forged Steel

7222-10-08-FG by Brennan Inc. | -10 Female JIC Swivel x -08 Male BSPP | 90° Elbow | Forged Steel

Sale price$68.16

Brennan Inc.
Conversion Adapters: 7222 - Female JIC Swivel x Male BSPP 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $64.07
40–79 $57.94
80+ $51.12
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 5/8in Female JIC
  • 1/2in Male BSPP
Material(s):
  • Steel
Part Number Material B1JIC 37° B2BSPP B1Drill B2Drill MLength LLength CHex YFlats
7222-04-04-FG Forged Steel 7/16-20" 1/4-19" 4.4mm 4.7mm 29.1mm 27.8mm 14.0mm 14.0mm
7222-06-06-FG Forged Steel 9/16-18" 3/8-19" 7.5mm 7.9mm 32.6mm 31.7mm 19.0mm 19.0mm
7222-08-06-FG Forged Steel 3/4-16" 3/8-19" 9.9mm 7.9mm 35.1mm 31.7mm 22.0mm 19.0mm
7222-10-08-FG Forged Steel 7/8-14" 1/2-14" 12.3mm 11.1mm 41.1mm 37.0mm 27.0mm 22.0mm
7222-12-12-FG Forged Steel 1-1/16-12" 3/4-14" 15.5mm 16.7mm 44.4mm 41.6mm 32.0mm 27.0mm
n

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
