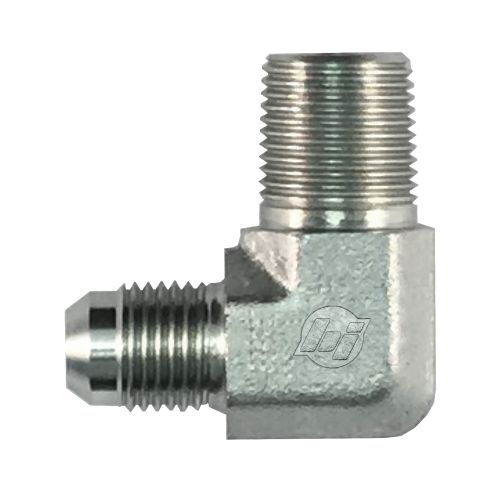

7200-08-06-FG by Brennan Inc. | -08 Male JIC x -06 Male BSPT | 90° Elbow | Forged Steel
Brennan Inc

7200-08-06-FG by Brennan Inc. | -08 Male JIC x -06 Male BSPT | 90° Elbow | Forged Steel

Sale price$22.29

Brennan Inc.
Conversion Adapters: 7200 - Male JIC x Male BSPT 90° Elbow

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Male JIC
  • 3/8in Male BSPT
Material(s):
  • Steel
Part Number Material B1JIC 37° A2BSPT B1Drill A2Drill MLength LLength YFlats
7200-04-02-FG Forged Steel 7/16-20" 1/8-28" 4.4mm 4.8mm 22.50mm 20.00mm 11.10mm
7200-04-04-FG Forged Steel 7/16-20" 1/4-19" 4.40mm 7.10mm 26.70mm 27.70mm 14.30mm
7200-06-04-FG Forged Steel 9/16-18" 1/4-19" 7.50mm 7.10mm 26.90mm 27.70mm 14.30mm
7200-06-06-FG Forged Steel 9/16-18" 3/8-19" 7.50mm 10.30mm 29.00mm 31.00mm 19.00mm
7200-06-08-FG Forged Steel 9/16-18" 1/2-14" 7.10mm 13.10mm 31.00mm 37.30mm 22.00mm
7200-08-06-FG Forged Steel 3/4-16" 3/8-19" 9.90mm 10.30mm 32.00mm 31.00mm 19.00mm
7200-08-08-FG Forged Steel 3/4-16" 1/2-14" 9.90mm 13.50mm 34.00mm 37.50mm 22.00mm
7200-10-08-FG Forged Steel 7/8-14" 1/2-14" 12.30mm 13.00mm 36.80mm 37.30mm 22.20mm
7200-12-08-FG Forged Steel 1-1/16-12" 1/2-14" 15.50mm 12.00mm 44.20mm 40.00mm 27.00mm
7200-12-12-FG Forged Steel 1-1/16-12" 3/4-14" 15.50mm 18.30mm 42.20mm 40.40mm 27.00mm
7200-16-16-FG Forged Steel 1-5/16-12" 1-11" 21.40mm 23.80mm 46.00mm 50.00mm 33.30mm
7200-20-20-FG Forged Steel 1-5/8-12" 1-1/4-11" 27.50mm 31.70mm 52.50mm 60.50mm 41.00mm
7200-24-24-FG Forged Steel 1-7/8-12" 1-1/2-11" 33.30mm 38.10mm 59.20mm 67.10mm 47.60mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
