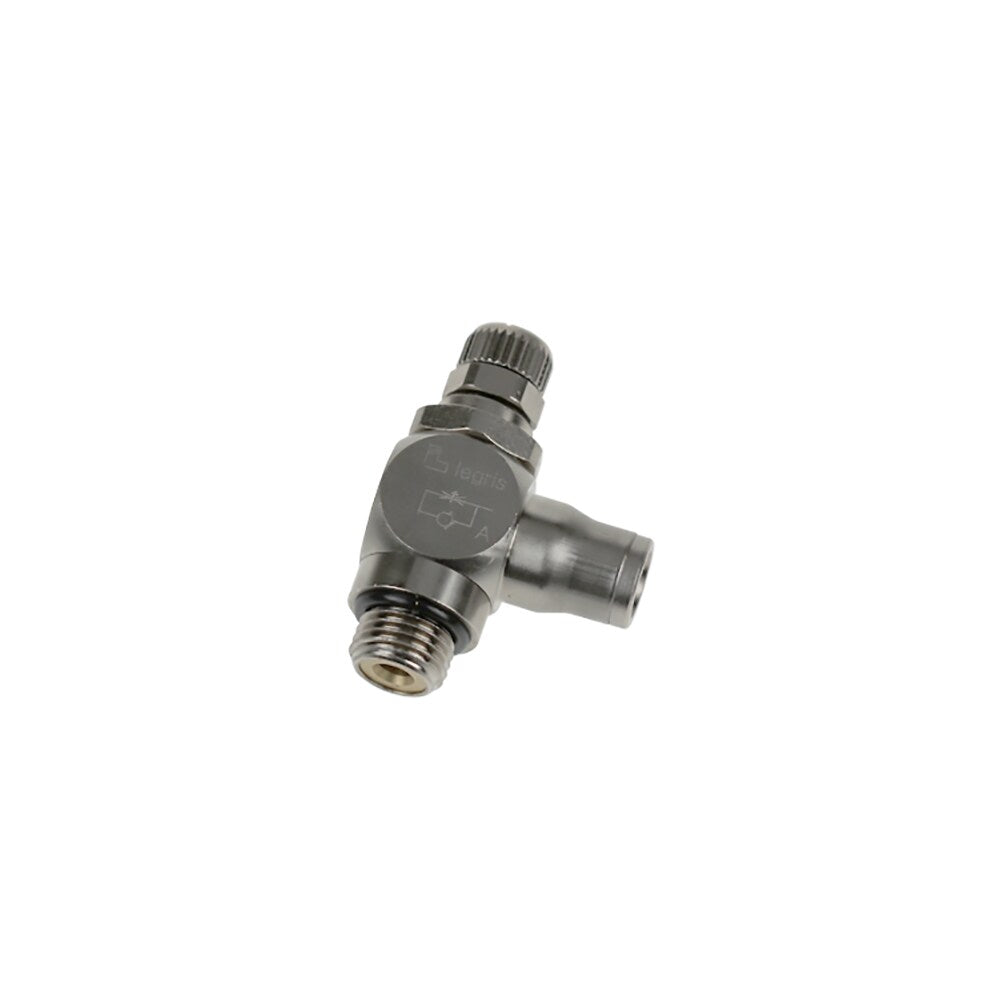

7180 08 10 by Parker | Legris Miniature Flow Regulator Exhaust | 8mm Tube Size x 1/8" Male BSPP Thread | 13mm Hex | 49mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Flow Control Regulators:7180 Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $412.65 |
| 15–29 | $373.14 |
| 30+ | $329.24 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H (max) | H (min) | J | L | Kg |
| 7180 04 19 | 4 mm | M5x0.8 | 4 mm | 8 mm | 29 mm | 24 mm | 10 mm | 19 mm | .012 Kg |
| 7180 06 19 | 6 mm | M5x0.8 | 4 mm | 8 mm | 29 mm | 24 mm | 10 mm | 24 mm | .015 Kg |
| 7180 06 10 | 6 mm | 1/8" | 5 mm | 13 mm | 44 mm | 39 mm | 15 mm | 22 mm | .043 Kg |
| 7180 08 10 | 8 mm | 1/8" | 5 mm | 13 mm | 44 mm | 39 mm | 15 mm | 26 mm | .049 Kg |
