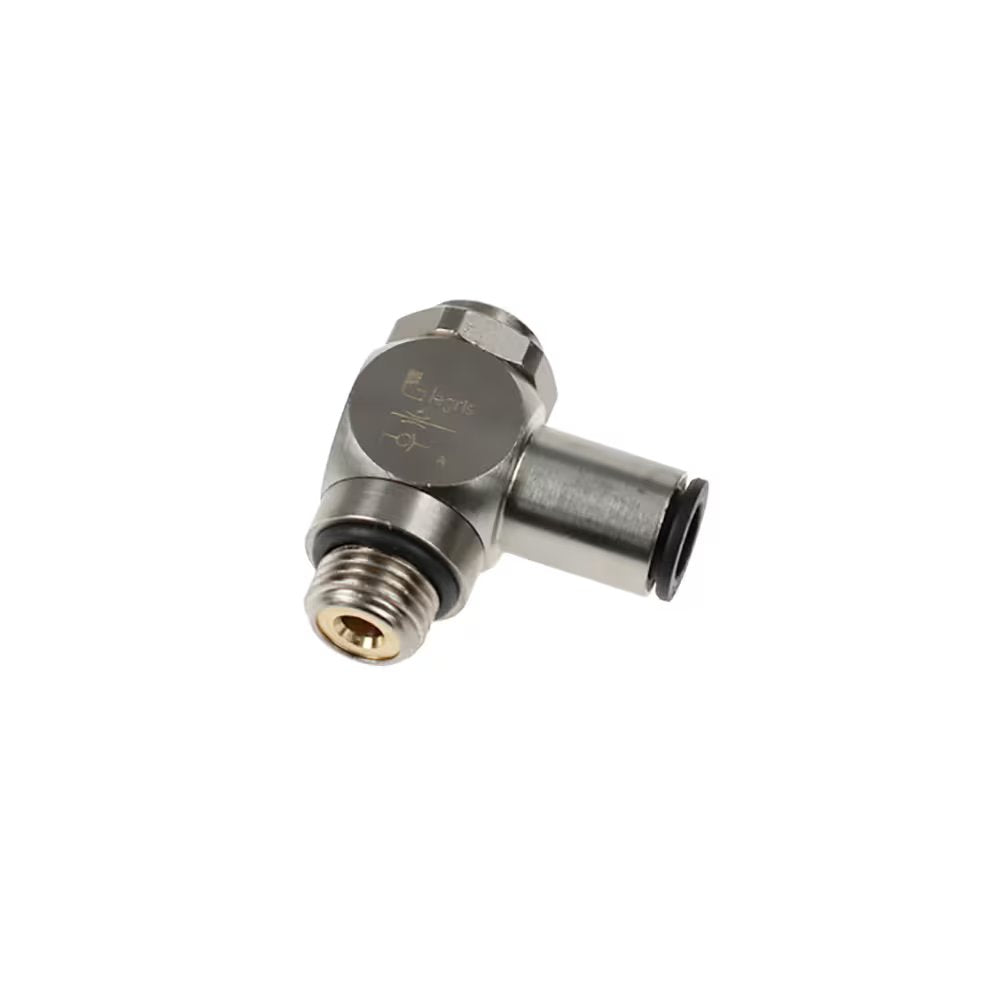

7130 06 13 by Parker | Legris Flow Regulator | 6mm Tube Size x 1/4" Male BSPP Thread | 17mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Flow Control Regulators:7130 Flow Regulator, Exhaust, Male BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $258.01 |
| 15–29 | $233.31 |
| 30+ | $205.86 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | J | L | Kg |
| 7130 04 19 | 4 mm | M5x0.8 | 4 mm | 8 mm | 17 mm | 9 mm | 19 mm | .010 Kg |
| 7130 04 10 | 4 mm | 1/8" | 5 mm | 13 mm | 29 mm | 15 mm | 20 mm | .037 Kg |
| 7130 06 19 | 6 mm | M5x0.8 | 4 mm | 8 mm | 17 mm | 9 mm | 24 mm | .013 Kg |
| 7130 06 10 | 6 mm | 1/8" | 5 mm | 13 mm | 29 mm | 15 mm | 22 mm | .038 Kg |
| 7130 06 13 | 6 mm | 1/4" | 8 mm | 17 mm | 31 mm | 18 mm | 24 mm | .062 Kg |
| 7130 08 10 | 8 mm | 1/8" | 5 mm | 13 mm | 29 mm | 15 mm | 25 mm | .042 Kg |
| 7130 08 13 | 8 mm | 1/4" | 8 mm | 17 mm | 31 mm | 18 mm | 28 mm | .066 Kg |
| 7130 08 17 | 8 mm | 3/8" | 7 mm | 20 mm | 40 mm | 21.5 mm | 29 mm | .109 Kg |
| 7130 10 13 | 10 mm | 1/4" | 8 mm | 17 mm | 31 mm | 18 mm | 30 mm | .075 Kg |
| 7130 10 17 | 10 mm | 3/8" | 7 mm | 20 mm | 40 mm | 21.5 mm | 32 mm | .119 Kg |
| 7130 10 21 | 10 mm | 1/2" | 8 mm | 23 mm | 53 mm | 28 mm | 34 mm | .227 Kg |
| 7130 12 21 | 12 mm | 1/2" | 8 mm | 23 mm | 53 mm | 28 mm | 38 mm | .306 Kg |
