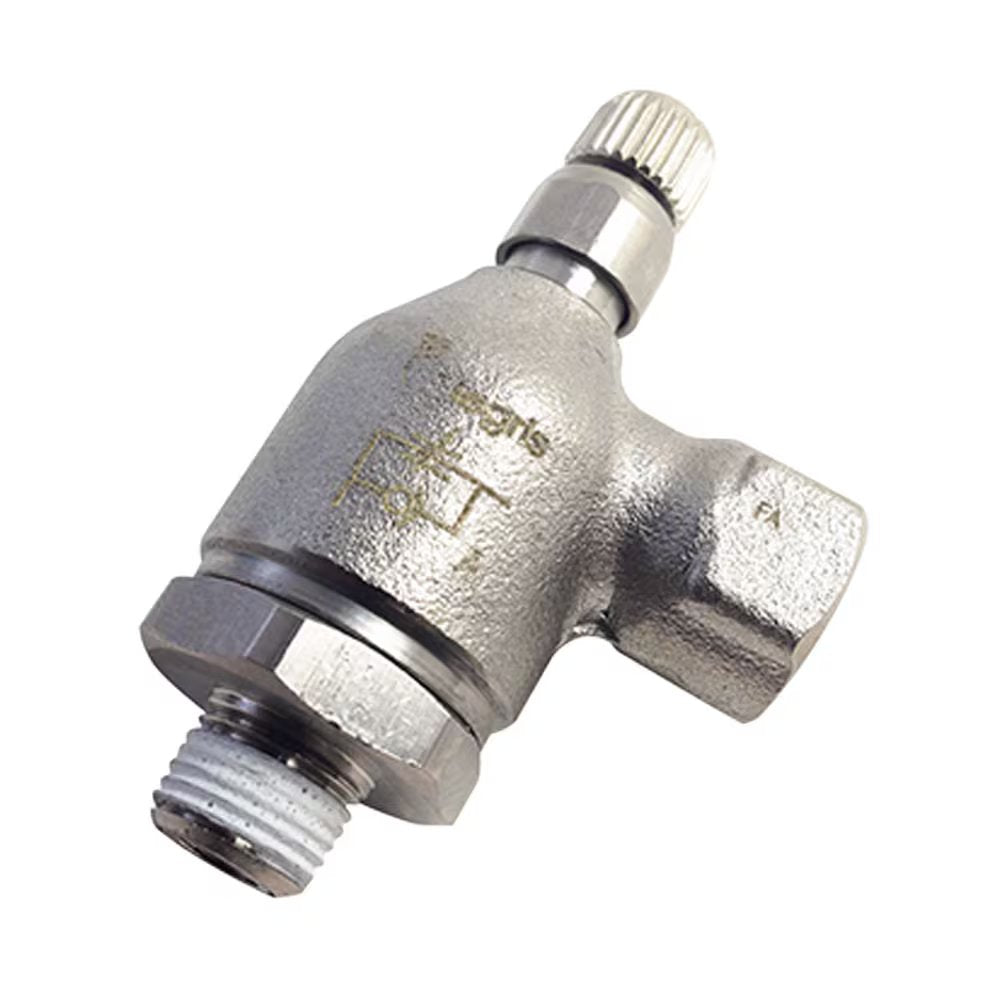

7115 22 22 by Parker | Legris Metal Flow Control | 1/2" Male NPT Thread x 1/2" Female NPT Thread | 25mm Hex (F) | 17mm Hex (F1) | 90° Elbow | Nickel-Plated Brass

7115 22 22 by Parker | Legris Metal Flow Control | 1/2" Male NPT Thread x 1/2" Female NPT Thread | 25mm Hex (F) | 17mm Hex (F1) | 90° Elbow | Nickel-Plated Brass

Sale price$66.96

by Parker Hannifin
Metal Flow Controls:7115 - threaded port meter out metal flow control NPT
Buy More, Save More!
Quantity Price Each
20–39 $62.94
40–79 $56.92
80+ $50.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7115 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/2in Male NPT
  • 1/2in Female NPT
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT (C) F F1 H (min) H (max) L Oz
7115 11 11 1/8" 19 mm 10 mm 1.79" 2.01" .89" 2.75 Oz
7115 14 14 1/4" 19 mm 14 mm 1.91" 2.11" 1.28" 3.90 Oz
7115 22 22 1/2" 25 mm 17 mm 2.15" 2.40" 1.50" 7.64 Oz
