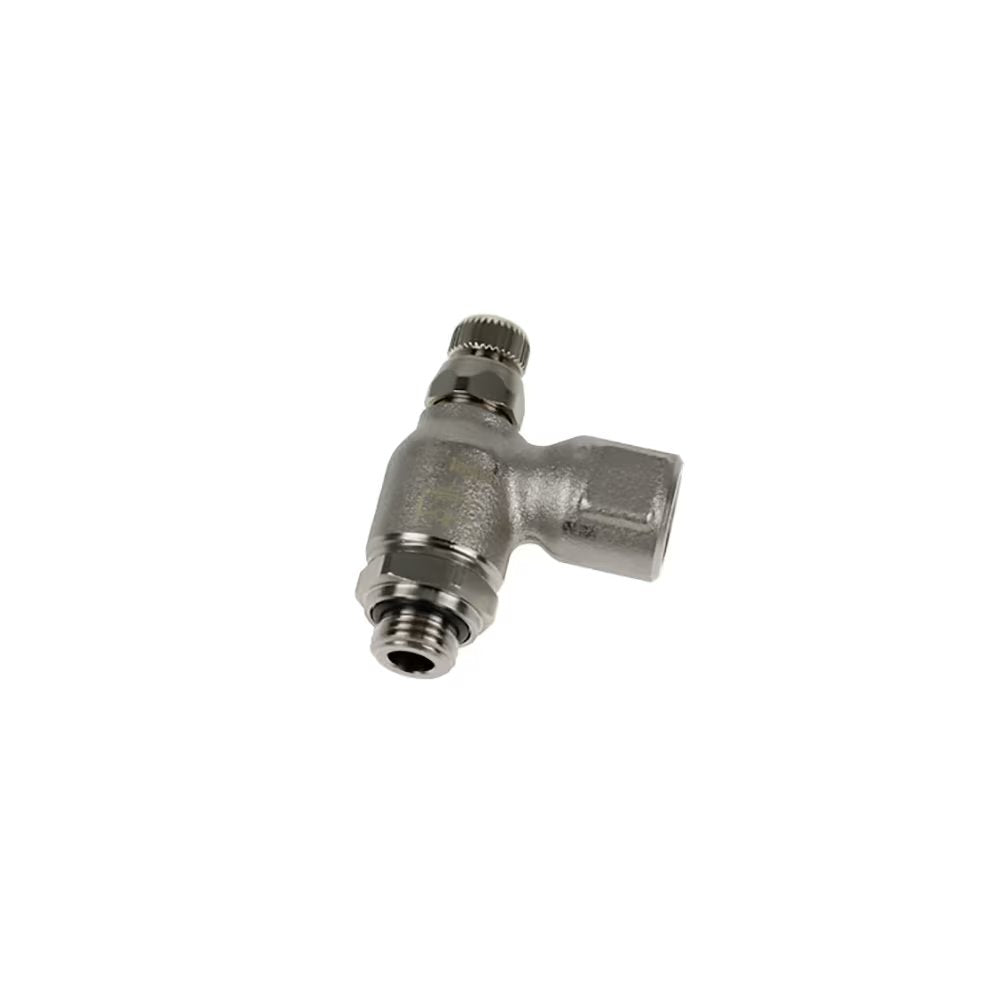

7110 10 10 by Parker | Legris Compact Flow Regulator Exhaust | 1/8" Male/Female BSPP Thread | 19mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

7110 10 10 by Parker | Legris Compact Flow Regulator Exhaust | 1/8" Male/Female BSPP Thread | 19mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Sale price$240.42

by Parker Hannifin
Flow Control Regulators:7110 Compact Flow Regulator Exhaust, Male/Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $225.99
30–59 $204.36
60+ $180.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7110 Series
Shape:

90° Elbow

Ends Configuration:
  • 1/8in Male BSPP
  • 1/8in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C F F1 H (max) H (min) H1 L Kg
7110 10 10 1/8" 10 mm 19 mm 52.5 mm 47 mm 23 mm 22.5 mm .080 Kg
7110 13 13 1/4" 14 mm 19 mm 55.5 mm 50.5 mm 25 mm 32 mm .107 Kg
7110 17 17 3/8" 17 mm 25 mm 62 mm 56 mm 27 mm 34.5 mm .212 Kg
7110 21 21 1/2" 17 mm 25 mm 62 mm 56 mm 27 mm 37.5 mm .191 Kg
