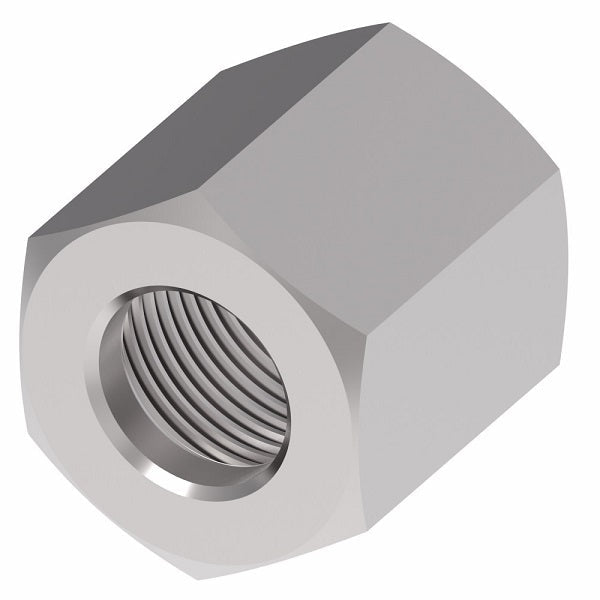

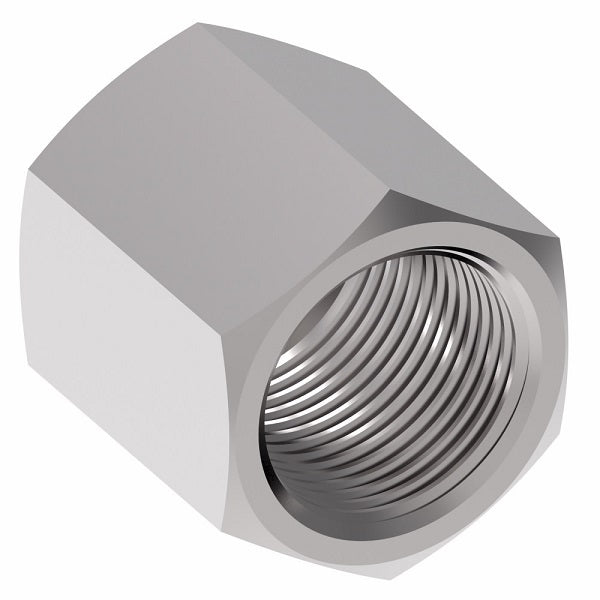

7105X6 Ermeto by Danfoss | 7000 Series | Nut | 3/8" Tube OD | Steel
7105X6 Ermeto by Danfoss | 7000 Series | Nut | 3/8" Tube OD | Steel
7105X6 Ermeto by Danfoss | 7000 Series | Nut | 3/8" Tube OD | Steel

7105X6 Ermeto by Danfoss | 7000 Series | Nut | 3/8" Tube OD | Steel

Minimum Order Quantity: 10 Units

Sale price$1.85

Ermeto by Danfoss
Nut

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Buy More, Save More!
Quantity Price Each
20–39 $1.74
40–79 $1.57
80+ $1.39
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Steel
Specifications:
  • Ref. SAE No. 080110
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Tube O.D. Hex C L D Diameter
7105X2 1/8" 3/8" 0.53" 0.132"
7105X3 3/16" 7/16" 0.61" 0.195"
7105X4 1/4" 9/16" 0.70" 0.257"
7105X5 5/16" 5/8" 0.72" 0.320"
7105X6 3/8" 1-1/16" 0.75" 0.382"
7105X8 1/2" 7/8" 0.84" 0.508"
7105X10 5/8" 1" 0.92" 0.634"
7105X12 3/4" 1-1/4" 0.97" 0.759"
7105X16 1" 1-1/2" 1.05" 1.009"
7105X20 1-1/4" 2" 1.05" 1.263"
7105X24 1-1/2" 2-1/4" 1.03" 1.513"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
